A meme about whether an airplane can take off on a treadmill has been going around social media lately, tearing friendships apart with its divisiveness, ruining families and sending the world further into chaos. But now it’s time to put an end to the madness. Let’s look at the science!

The question goes like this: “Imagine a 747 sitting on a large conveyor belt, as long and as wide as a runway. The conveyor belt is designed to exactly match the speed of the wheels, but run in the opposite direction. Can the plane take off?”

Advertisement

The answer is yes, the plane will take off, and the explanation why is very simple. I’ll use some free-body diagrams (without coordinate systems, sorry enginerds) to break it down. But before we go into that, let the lovable folks from Mythbusters walk you through why the plane will indeed take off:

Like the Mythbusters say in the clip, the biggest reason why people get the answer to this question wrong is that they naturally tend to assume the plane would act the same was as an automobile—a vehicle that we all know would remain stationary on a treadmill.

But a car’s propulsion system works differently than a plane’s. I described how a vehicle drives forward in my Crawl Ratios and Off-Road Gearing: Everything You’ve Ever Wanted To Know article, saying:

The reason why your car moves forward at all is because the ground is actually “pushing” the car forward by reacting to your wheel’s force against the ground.

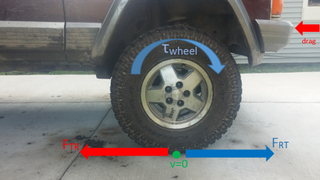

In other words, your car moves because of FRT (the “thrust”) in the diagram above, which is only there because it’s a reaction to the force that your tire imparts against the road. This force, labeled FTR above, is just your our wheel’s torque (which is the torque from the engine multiplied by your trans, transfer case, and differential ratios) divided by the tire radius.

Advertisement

But if the car is on a treadmill, the ground can easily move relative to the vehicle. As a result, the engine will not produce much torque, the car won’t be able to impart much of a force to the ground (other than to overcome frictional losses of the treadmill), and thus, the ground won’t be able to impart much of a force back onto the car. The car will remain stationary.

Indeed, vehicle dynamometers actually uses rollers that have brakes to increase the “ground’s” resistance. By doing this, they’re gradually increasing the amount of torque the engine has to make to keep the wheels rotating (thus, they’re increasing FTR and FRT—hence why you need straps to hold the cars in place). Without adding resistance to the wheels, dynos could not produce a torque curve.

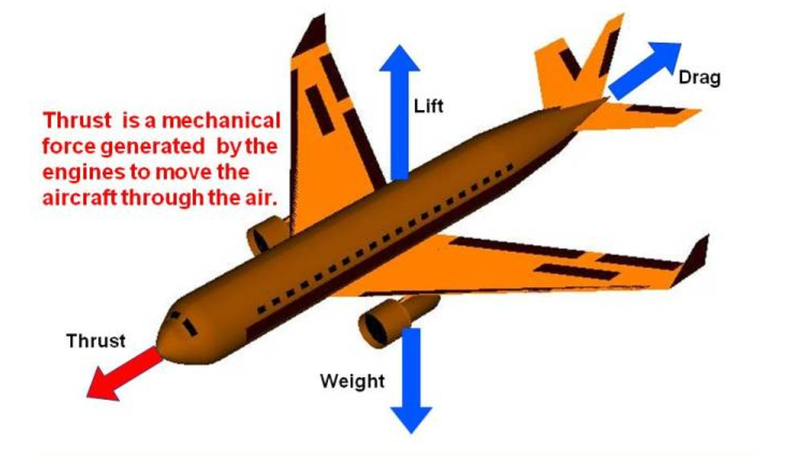

Photo: NASA (modified by David Tracy)

Airplanes work differently, in that they don’t send torque through tires, so they don’t receive thrust from the ground’s equal and opposite reaction to the tangential force of the powered wheels. Instead, they rely on a reaction from air.

Advertisement

Airplanes receive their thrust by accelerating a “working fluid” to ridiculously high speeds. Here’s NASA’s definition of thrust:

Thrust is a mechanical force which is generated through the reaction of accelerating a mass of gas, as explained by Newton’s third law of motion.

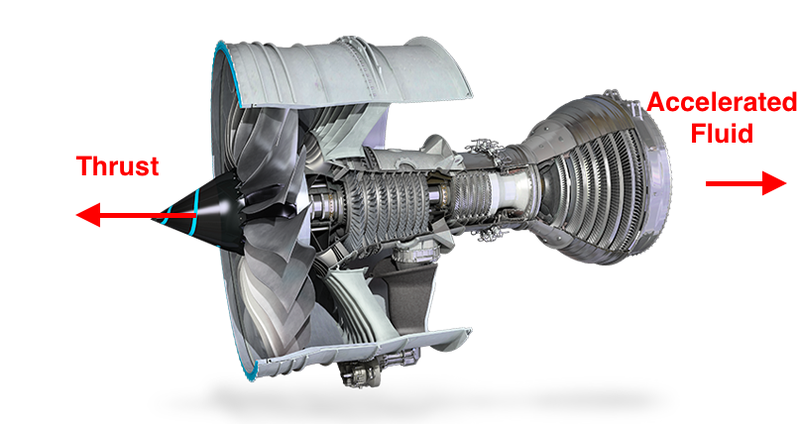

The key word, there, is “reaction.” Here’s a look at the forces acting on a stationary jet engine, which would normally be attached to a wing (ignoring gravity for now):

Photo: Rolls Royce (modified by David Tracy)

That thrust pushing the engine (and thus plane) forward is equal and opposite to the force associated with the accelerated fluid spewing from the back of the engine. And as NASA derives on its website, the latter is simply defined as the rate of change of the fluid’s momentum with respect to time.

Advertisement

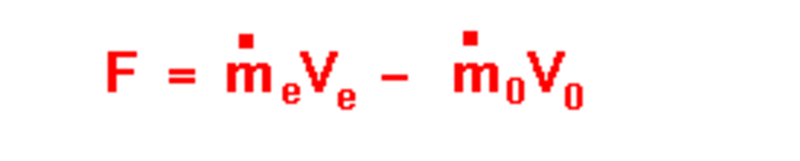

Put another way, it’s the difference between the gas’s exit mass flow rate times the exit velocity and the entry mass flow rate times the initial velocity.

The thrust moving the plane forward is simply the opposite of the rate of change of momentum of the gas shooting from the back of the jet engines.

Advertisement

In short, the treadmill in this whole meme is simply a red herring, since the airplane’s forward motion doesn’t depend on any reaction with the road, like it does on a car. The jet engines are acting on ambient air, and thus, the airplane will move relative to that ambient air and create lift, regardless of whatever is going on under the tires, which are just free-wheeling.

And you still don’t believe this, Mythbusters did a full-scale test:

So yes, it can take off. Please stop fighting.

Update: My interpretation above assumes that the problem statement “designed to exactly match the speed of the wheels” means the wheel’s tangential velocity is the same as that of the treadmill (which is always true for rolling conditions), though the reasoning also holds true for if the wheel’s translational velocity is equal to that of the treadmill’s. You can read about other interpretations of the problem statement on XKCD.
