Ever notice that some big trucks sometimes have random-looking extra tires attached to them that seem to be pointlessly floating? Those aren’t spares and they’re not for decoration, even when they’re mounted on the top of the truck.

The simplest explanation is that the more axles a truck has, the more weight it can carry. But the more axles a truck uses, the less maneuverable it is. More axles also make a vehicle less efficient by adding rolling resistance and even cost the operator extra money through tolls. Plus, of course, more tires in use means more tires to replace, and big truck tires aren’t cheap.

Advertisement

Hence why some heavy load-hauling trucks have what are known as “drop axles,” which are exactly what they sound like. Drop axles spend most of their time tucked up against the truck’s belly until extra weight capacity is required, then can be lowered when needed.

Let’s take a closer look at the 2007 Sterling LT9500 I showed in the image above here. Since it’s being auctioned off on a government surplus site as I’m writing this, there are good images of its oily bits:

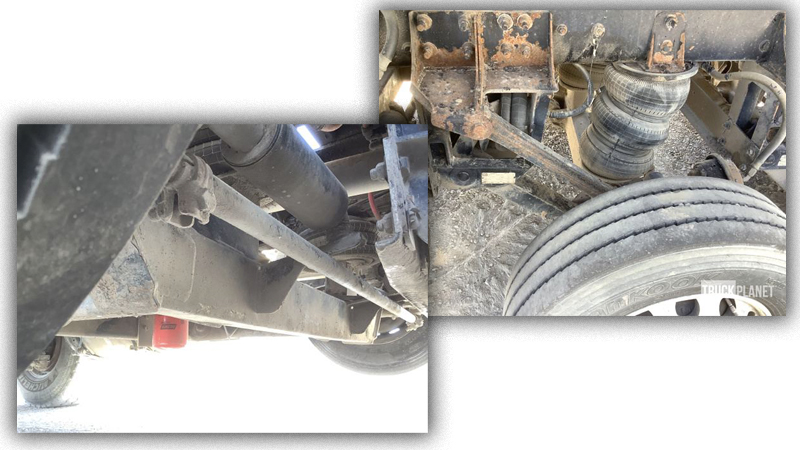

Two angles of one of this Sterling’s drop axles
Photo: Iron Planet

As you can see, the drop axle on this vehicle gets pushed down by a big air bag, which is that dusty black bloated caterpillar-looking thing in the top right picture for those of you reading this who are less technologically keen. (Hi, mom.)

Here’s a video with neat diagrams explaining similar systems on another truck:

And here’s yet another close-up look at a different kind of truck with drop axles if you want to see it one more way.

Advertisement

How much physical work these drop axles actually do depends on the truck. That Sterling has big, beefy tires and thick axles at the back, but the drop axles don’t look nearly as robust and obviously the tires are tiny by comparison. Other trucks could have heavier-duty drop axles though, which would equip them for harder work.

Drop axles are also significant from a legal standpoint. Legal weight limits for commercial vehicles, which vary from state to state, are posted per axle. So not only do the extra wheels help bear physical weight, they’re required for compliance with trucking laws.

Advertisement

If you want to get nerdy with this, there are online calculators you can play with to plug in the weight of a truck and the number of axles it has to determine what’s legal and what isn’t. (To be clear, if your job or safety depends on knowing this stuff, please study a more comprehensive rundown.)

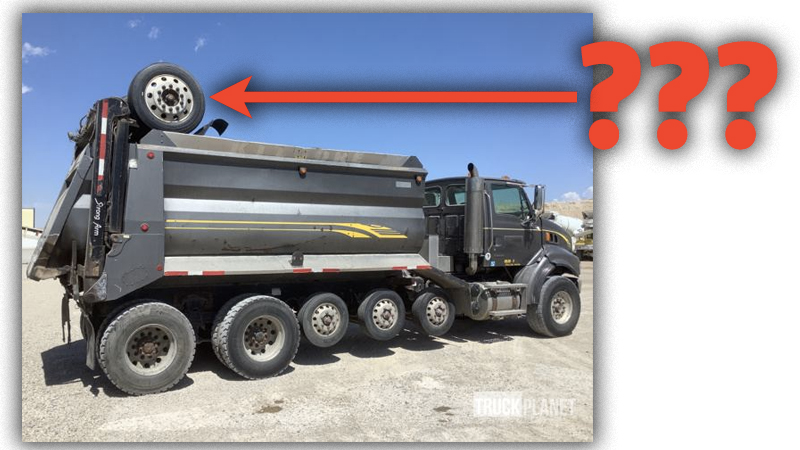

That brings us to that weird extra-extra axle you see mounted on top of this ’07 Sterling, and perhaps you’ve seen similar in real life. What is that last axle doing all the way up there?

Advertisement
Photo: Iron Planet

It, too, is ostensibly for weight-bearing but largely for legality. The formula that determines legal weight limits per-axle doesn’t just depend on the quantity of axles, their spacing is important too.

Advertisement

So when this Sterling LT9500 hits a cargo weight that’s really high, that final axle that appears to be riding on top of the dump bucket actually drops all the way down to Earth like a scorpion’s tail and effectively makes the truck significantly longer, satisfying a bigger range of weight-to-vehicle length ratios for legal compliance.

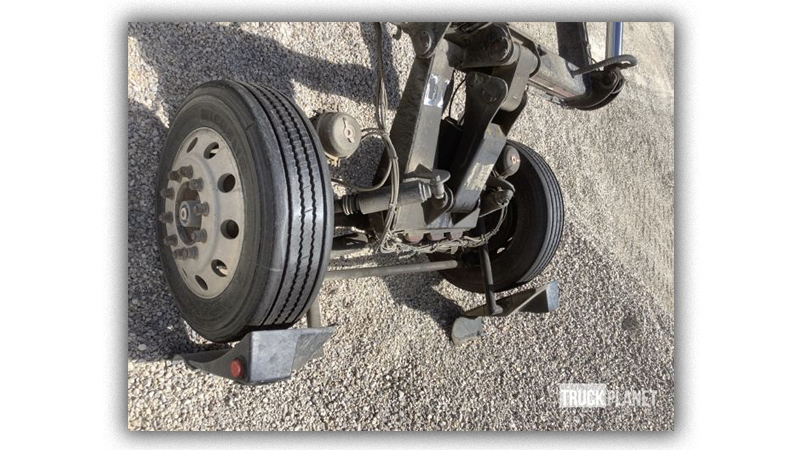

Here’s a closer look at the Sterling’s drop axle that comes from the top:

Advertisement

And here’s a video of what that system looks like in action on another truck:

So to review–let’s say your hypothetical dump truck has five full-time axles and five drop axels all rated to 5,000 pounds apiece. In this scenario optimized for easy math, your dumper bucket can hold 100 cubic feet of whatever. One day you’re hauling aluminum, that’s 169 pounds per cubic foot, so filled to the brim the rig needs to bear 16,900 pounds. That’s no problem with the wheels on the ground.

Advertisement

The next day you’re fully loaded with iron, now that’s almost 500 pounds per cubic foot and suddenly the truck’s heaving 49,100 pounds of payload even though the cargo level in the bucket looks the same. Let’s say your frame can handle it, but the axles are maxed out at 25,000 pounds. So it’s time to hit the switch on those drop axles. Now you can bear 50,000 pounds, and the iron can be taken to wherever it needs to go.

Once you dump it, you can retract your drop axles to save on tire wear, fuel, and toll bills. And most importantly, the truck will be much easier to drive with fewer wheels on the road.

Advertisement

Hope you had fun trucking with us, or at least learned something today.
