The all-new Ford Mustang offers a choice of engines available with either manual or automatic transmissions that make it a great all-around performer no matter how you mix and match.
Less is more, EcoBoost comes to Mustang

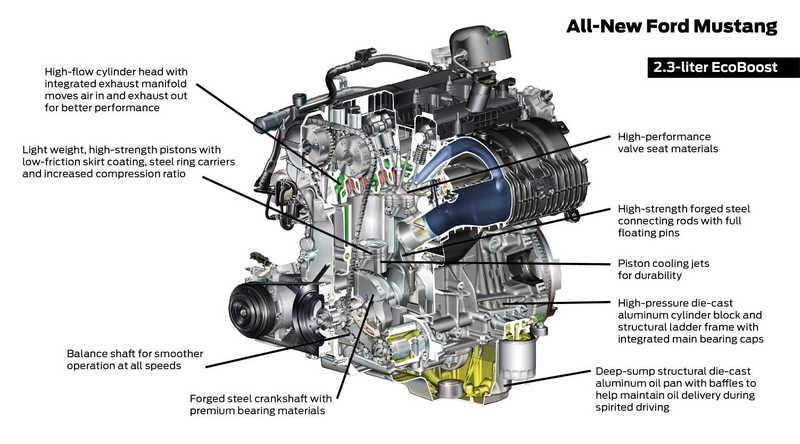

The new 2.3-liter EcoBoost engine brings turbocharging to the Mustang powertrain lineup. Designed to meet the needs of drivers looking for outstanding performance and projected best-in-class fuel efficiency, this EcoBoost engine has been developed specifically for Mustang. The intake manifold and turbocharger housing are optimized to provide better breathing and higher output in Mustang.
With a projected 305-plus horsepower and 300-plus lb.-ft. of torque, this EcoBoost engine fits the bill for a true Mustang powerplant.
"This EcoBoost engine delivers the healthy output that Mustang drivers expect regardless of the speed," said Scott Makowksi, EcoBoost powertrain engineering manager. "This EcoBoost engine might be small in displacement, but it delivers where a Mustang driver expects it with a broad, flat torque curve and great driveability under any conditions."
The newest member of Ford's global family of EcoBoost engines, the 2.3-liter continues to take advantage of state-of-the-art technologies including direct fuel injection, twin independent variable camshaft timing and turbocharging to produce big-engine power and torque with improved fuel efficiency.
This is the first Ford engine to utilize a low-inertia twin-scroll turbocharger that provides quicker boost response while enabling lower emissions and improved efficiency. The cylinder head features an integrated exhaust manifold that separates the inner and outer pairs of cylinders into each inlet passage to the turbo.
Keeping the exhaust pulses separated from the next cylinder in the firing order eliminates mixing losses and maximizes pulse energy to the turbine wheel. The result is quicker torque delivery when the driver needs it for passing maneuvers and similar performance to a twin-turbocharger configuration.
The separated exhaust ports also enable the exhaust valves to stay open longer for reduced pumping losses that improve specific fuel consumption by about 1 percent.
With more than 305 horsepower and 300 lb.-ft. of torque pumped out from such a small engine, in a car where drivers are more inclined to use it, ensuring durability was critical. Enhancements to the Mustang EcoBoost engine to withstand the added stresses include:
- Forged-steel crankshaft
- Piston-cooling jets
- Steel piston ring carriers
- Premium bearing materials
- Upgraded valve seat materials
- Forged-steel connecting rods
- High-pressure die-cast aluminum cylinder block with ladder-frame bearing caps
- Deep-sump, die-cast aluminum oil pan
The beating heart of a pony
No Ford Mustang engine lineup would be complete without a great V8 engine at its core. The 5.0-liter V8 powers into a new generation with a host of upgrades that enable it to breathe better, especially at higher engine speeds. Many of these changes are derived from the lessons learned in developing the special edition 2013 Mustang Boss 302.
Getting air into the cylinders and exhaust out is the key to generating more power and torque from any engine, and that has been the focus of development on the V8, which features:
- Larger intake valves
- Larger exhaust valves
- Revised intake camshafts
- Revised exhaust camshafts
- Stiffer valve springs – ensures that the valves close completely at high rpm
- New cylinder-head casting – revised ports that provide a straighter path to the valves for less-restrictive intake and exhaust flow; combustion chamber modifications accommodate larger valves
- Sinter forged connecting rods – lighter and more durable for high-rpm operation
- Redesigned piston tops – deeper cutouts clear the new larger valves
- Rebalanced forged crankshaft – supports higher-rpm operation
These upgrades are projected to generate more than 420 horsepower and 390 lb.-ft. of torque.
A new intake manifold includes charge motion control valves to partially close off port flow at lower engine speeds. This increases the air charge tumble and swirl for improved air-fuel mixing. This results in better fuel economy, idle stability and lower emissions.
The variable camshaft timing on the intake side now has a greater range of adjustment available thanks to mid-lock phasers. This enables better optimized control of the valve timing over a broader range of engine speeds and loads for improved fuel economy and emissions
More than most drivers, Mustang owners like to take control and shift for themselves. Whether they select a fully manual gearbox or the updated automatic transmission, the experience will be better than in any previous pony.
The Getrag manual has a new shift linkage design for shorter throws and improved precision. The shift lever is now positioned closer to the driver and away from the cup-holders so the driver has a clear path for shifting.
Mustang blends outstanding all-around performance and everyday usability. Drivers who prefer to let the car handle the shifting during their daily work run, but still want to take control when the roads get twisty, will appreciate the new steering-wheel-mounted shift paddles with rev-matching downshifts that are now standard with the Select-Shift six-speed automatic transmission.
The automatic also features a redesigned case with cast-in ribs that help make it stiffer and reduce the weight. Internally clutches have been optimized and operating temperature has been increased to reduce friction. The output shaft is now supported by a ball-bearing that enables a top speed of 155 mph for Mustang GT.
With a choice of powertrains to match driving styles and lifestyles, the new Mustang has contemporary technology under the hood to match its modern design and remain quintessentially Mustang.
