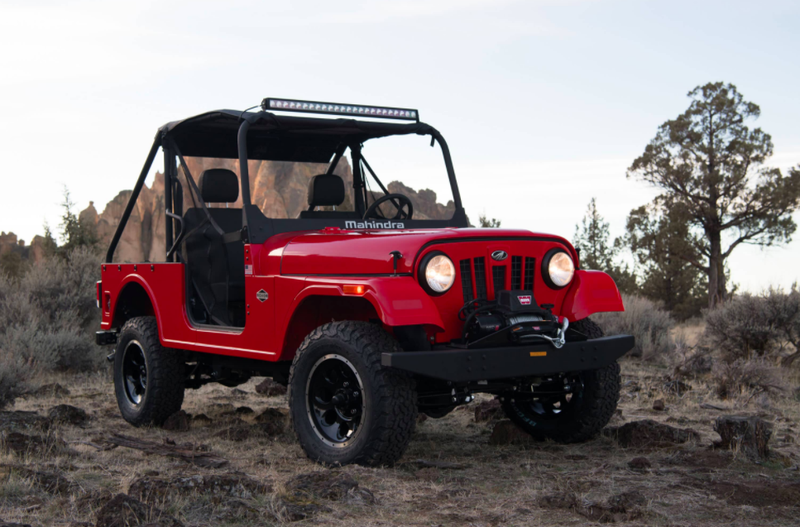

Mahindra just launched its new Roxor, a side-by-side that looks incredibly similar to an old Jeep. But it’s not just the looks; the hardware is very Jeep-ish, too. Let’s take a look.

After looking at photos of the new Roxor and talking with an engineer, it’s become clear that the most authentic “Jeep” in America will soon be something other than an actual Jeep. That’s because the new Mahindra Roxor shares a number of designs with the original 1940s civilian Jeep, the CJ-2A (and also other CJs, especially the CJ-3B), and even wears some interchangeable parts.

Suspension And Steering

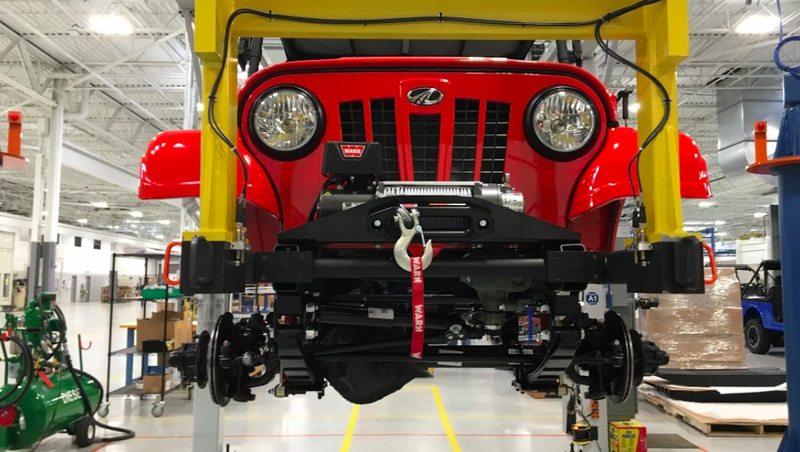

Image: Jason Torchinsky

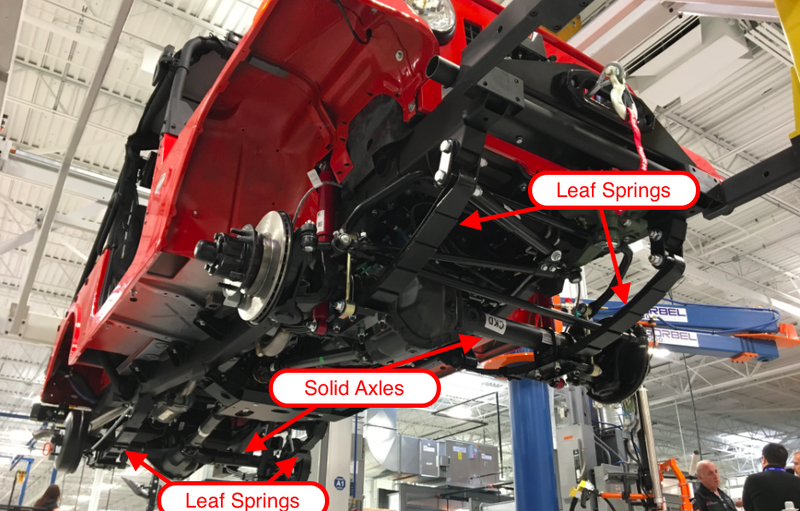

The suspension setup is almost exactly the same as that of an old CJ. Two sets of leaf springs are held underneath two axles via u-bolts. Those springs mount directly to a steel ladder frame on one end, and to a shackle on the other. (It’s worth mentioning that the Mahindra’s frame is fully boxed, while CJ frames tended to be “Cs” up front).

Advertisement

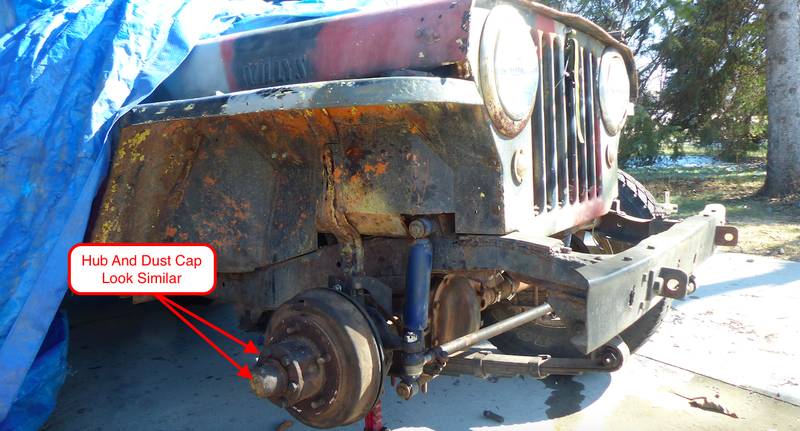

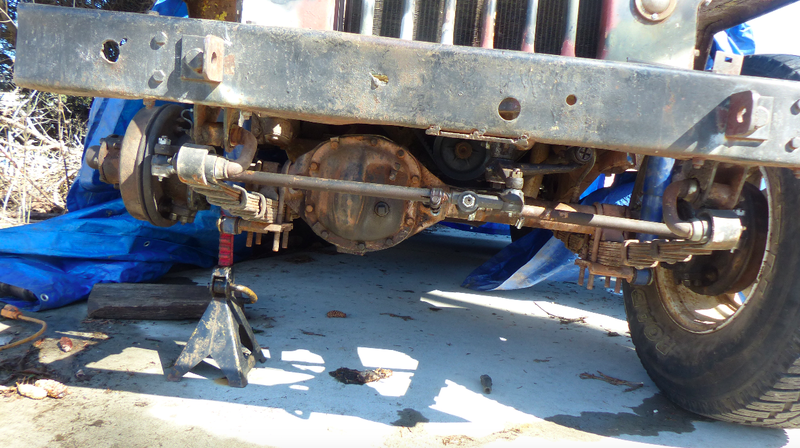

Looking at the CJ-2A front suspension above, the similar leaf-spring setup is apparent. Not to mention, the hub located on the very outside of the axle looks similar, as does its rounded dust cap.

CJ-2A Front Suspension

Advertisement

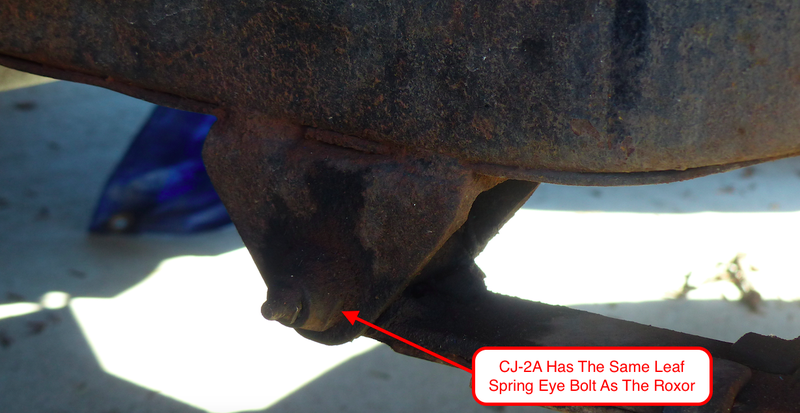

I spoke with Mahindra engineer Jeff Davis, and he told me that there are a number of interchangeable parts between the Roxor and an old Willys. The front bolt holding the rear leaf springs to the frame and the rear bolt holding the front leaf springs to the frame are exactly the same parts as those found in a 1940's Willys CJ-2A, he told me:

The fact that a new vehicle shares any parts with a 70 year-old one is mind-boggling. Speaking of shared parts, the axles are apparently remarkably similar to those found in old flatfender Jeeps (especially the CJ-3B’s rear Dana 44), though not quite the same.

Advertisement

“It’s an evolution of one of those original [axles],” Davis told me about when I asked how similar the axles were to those of an old Willys. “It’s an 8.5-inch ring gear; the rear has a two-piece axle shaft with at tapered outer hub. Very similar to the...old Dana 44 versions of the Willys. 5 x 5.5-inch bolt circle.”

Photo: Mahindra

Advertisement

And like those found on a CJ-3B (which Mahindra built its own version of under license for many years—see image above) as well as many other flatfenders, the front axle is a full-floating design, while the rear is a semi-floating setup. Here’s a look at what that means, but in short, a full-floating design means the axle shaft does not have to support the weight of the vehicle, while in a semi-float, it does share some of that load.

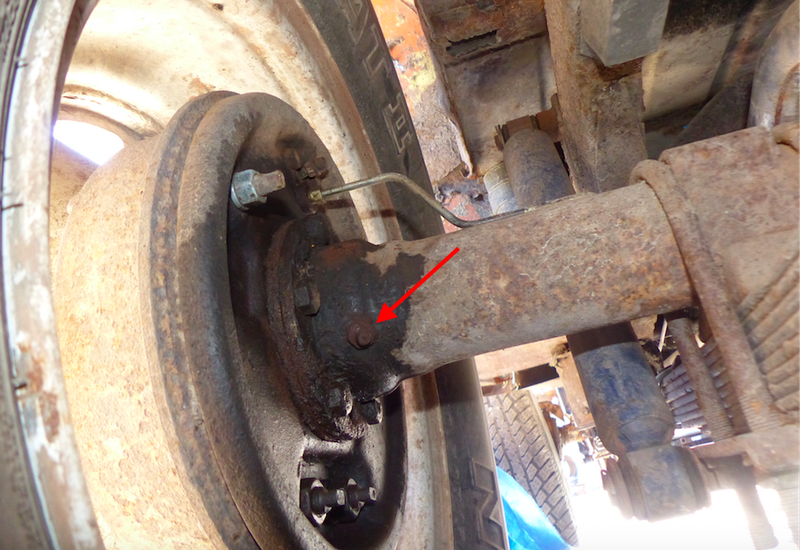

He went on, saying about the rear axle: “You know, it’s got a zerk grease-fitting outer bearing. It’s old-school.” For reference, here’s a look at the zerk fittings on my 1948 Willys CJ-2A’s rear axle (which is a Dana 41, the predecessor to the Dana 44 on which the Mahindra’s axles are based):

Advertisement

He continued, telling me that quite a few parts from the Roxor’s axles—which are built in-house, but based originally on Dana designs—are compatible with old Willys Jeep axles, specifically the Dana 44 found in the rear of the CJ-3B and others.

“The guts...You can buy off the shelf 44 ring gear and differentials, and drop them in,” he said. “I built one up the other day with a set of 5.38s.” (The Roxor, it’s worth noting, comes with 3.73 gears, though Davis told me shorter gears may be an option later).

But the Roxor’s differential has a unique “offset,” so a few modifications would need to be made for those interested in using straight-up Jeep parts.

Advertisement

“Say you buy an off-the shelf Dana 44 locker and you put it in either the front and rear with the current 3.73 ring gear set that’s in there,” Davis told me, “you need a little over a mil spacer just to make it all fit.”

That said, he went on to say “You can drop it in with an aftermarket gear set and it fits fine.”

Advertisement

So there are clearly quite a few similarities between an old flatfender Jeep’s suspension and axles, but—especially up front—there are also a number of notable differences.

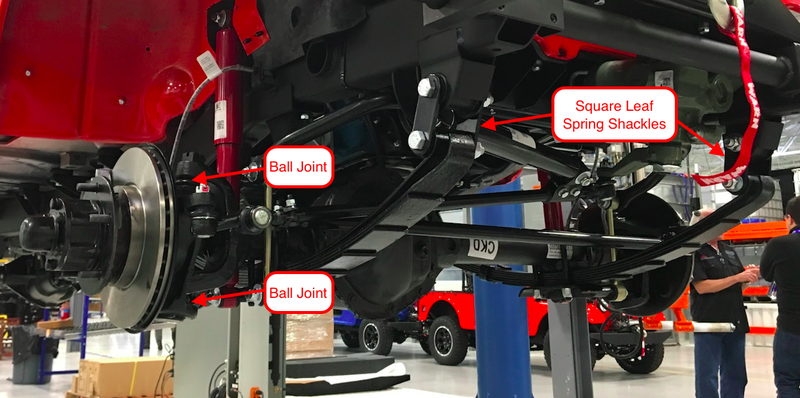

For example, the Mahindra’s shock is mounted behind the front axle, and the front brakes are discs and not drums. Not to mention, the leaf spring shackles on the Willys are C-shaped, whereas the Mahindra uses a square-shaped setup (see above).

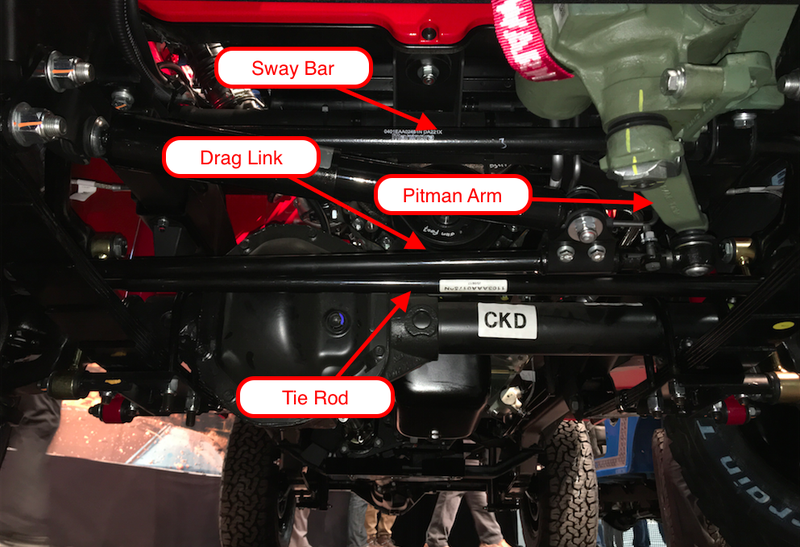

Mahindra Roxor front suspension and steering. Via: Mahindra

Advertisement

In fact, even though it might be derived from an old flatfender Jeep, the Mahindra’s front suspension and steering (above) actually looks closer to that of a Jeep CJ-7, as shown below:

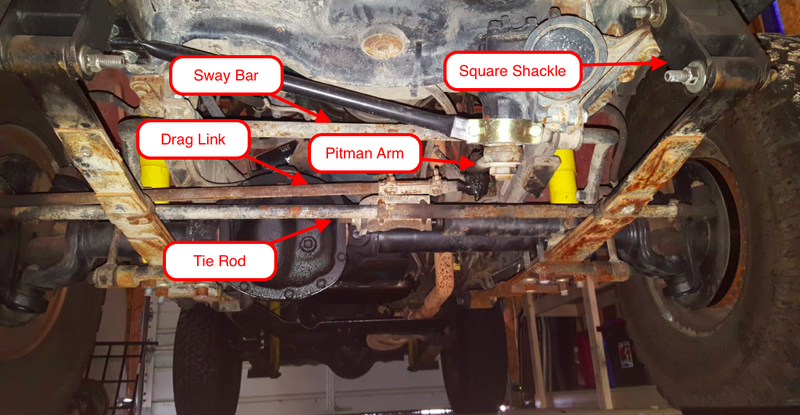

Front suspension and steering of a 1982 Jeep CJ-7. Image credit: Stephen

The CJ-7, like the Roxor, has disc brakes up front, its shocks are mounted behind the axle, the shackles are rectangular, and there’s actually a sway-bar, unlike in a Willys Jeep.

Advertisement

Plus, unlike old flatfenders (which used bellcranks), the Mahindra has more of a CJ-7-esque steering setup, with a pitman arm pushing and pulling a drag link, which rotates the knuckle on the passenger’s side (this is what turns the wheel). That knuckle—or, in the case of the Mahindra, the drag link—then pushes and pulls the knuckle on the driver’s side via a tie rod (thus turning the other wheel).

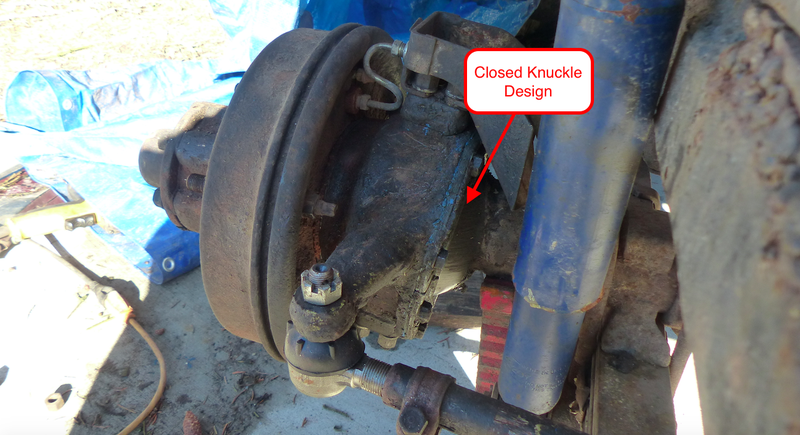

Also worth noting is that the front axle on the Roxor uses an open-knuckle design (see photo before the last two) with two ball joints holding the knuckle to the axle’s outer “C.” This is the same setup as that of a CJ-7 (you can see it in the photo above), though old flatfender Jeeps tended to use closed-knuckle setups like this:

Advertisement

So yes, from a steering and suspension standpoint, the Roxor is very CJ-ish. The axles are based off of Dana 44s like those found in the rear of 1950s-era CJ-3Bs, and can even house some common parts, and the suspension and steering design looks almost exactly like what’s found on a later CJ like the CJ-7.

Transfer Case

Advertisement

The transfer case is especially fascinating, because it’s a Mahindra derivation of the old Dana/Spicer Model 18, which was found in all flatfender Jeeps beginning in about 1940.

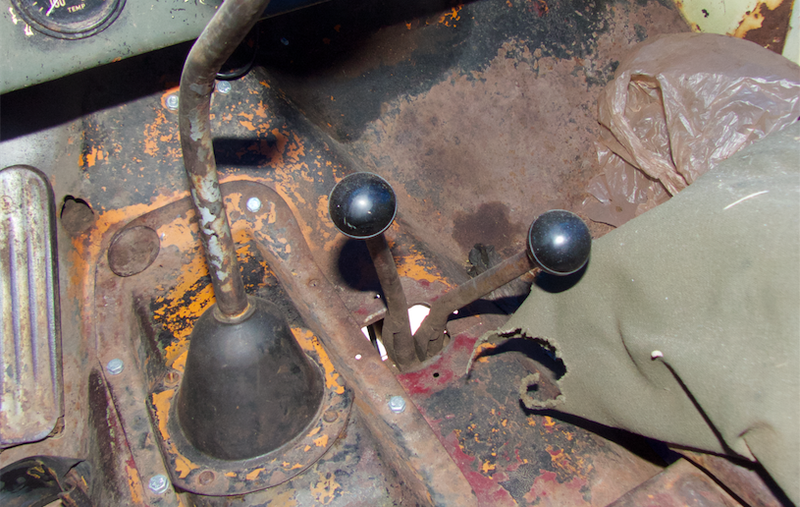

The more astute Willys aficionados among you might be yelling at your screens right now: “How can that be based on the Dana/Spicer Model 18, when it only has a single handle, and the shift pattern is completely different?!”

Advertisement

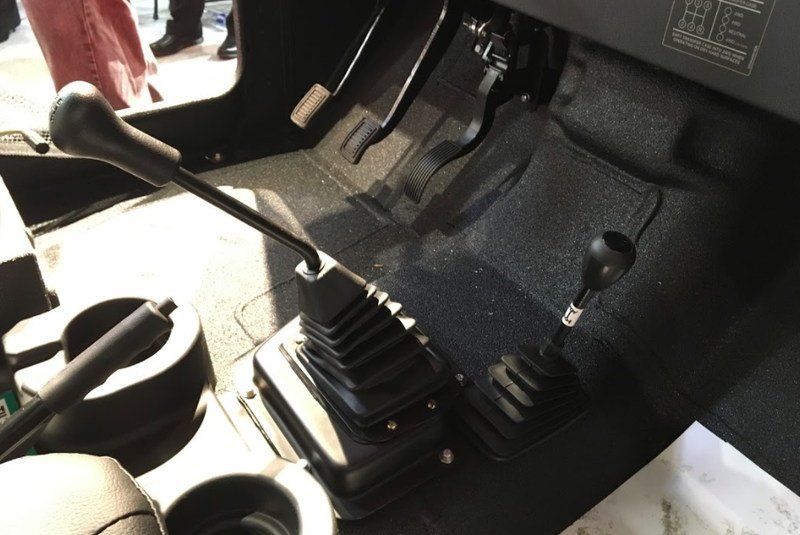

Well, Davis answered that, saying: “If you look at the transfer case, it’s actually a twin-stick transfer case, but it’s got an adapter to make it a single handle.”

Davis continued, saying: “It’s kind of modeled or an evolution of the old Dana Spicer.” It even has the same 2.46:1 low range ratio as many flatfender Jeeps, including the CJ-3B. How much is interchangeable, Davis doesn’t know, but he did say that he put a Dana/Spicer Model 18 Power Takeoff cover on it.

Advertisement

And yes, you read that right. The Mahindra Roxor has provisions for a Power Takeoff (though I’m unsure of the extent of those provisions, aside from a port in the transfer case). In case you don’t know what a PTO is, here’s a look at an old Willys Power Takeoff in action:

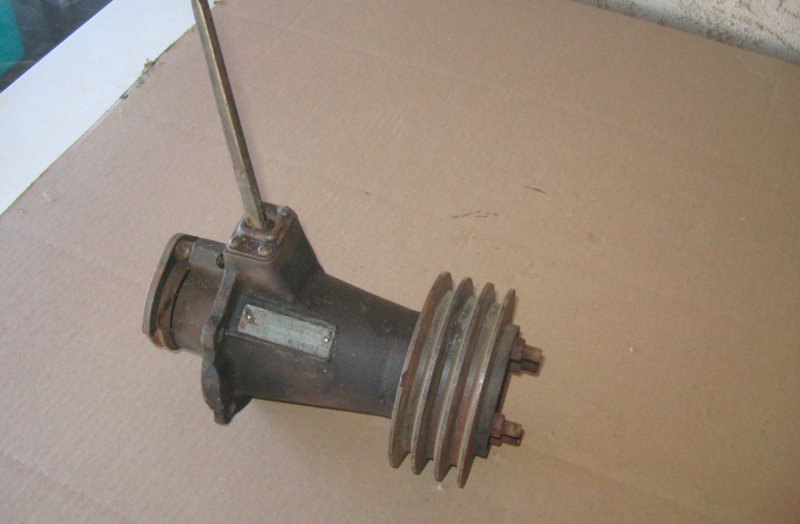

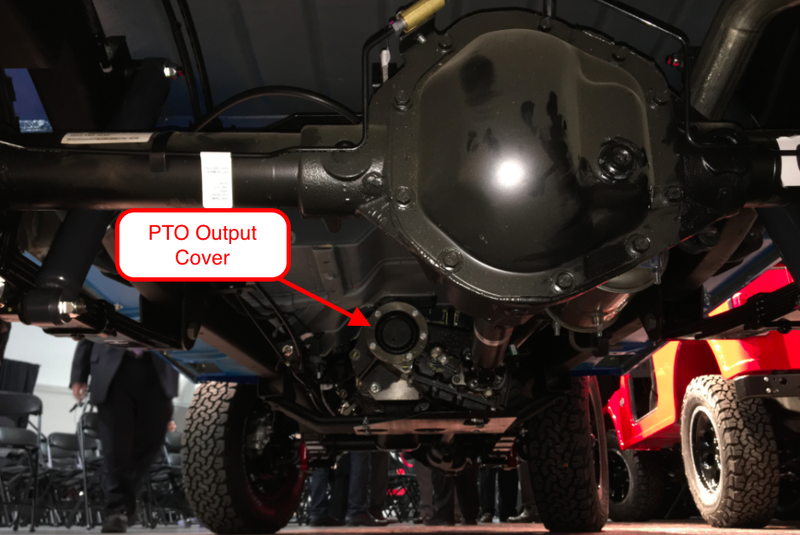

In a Willys Jeep, the Dana/Spicer Model 18's PTO port cover pointed out in the picture at the top of this section can be removed, and a PTO like this one can be bolted onto the back of the transfer case using the holes normally used for the cover (notice the handle, which sticks up through the body, and is used for PTO actuation):

Photo: Ebay

Advertisement

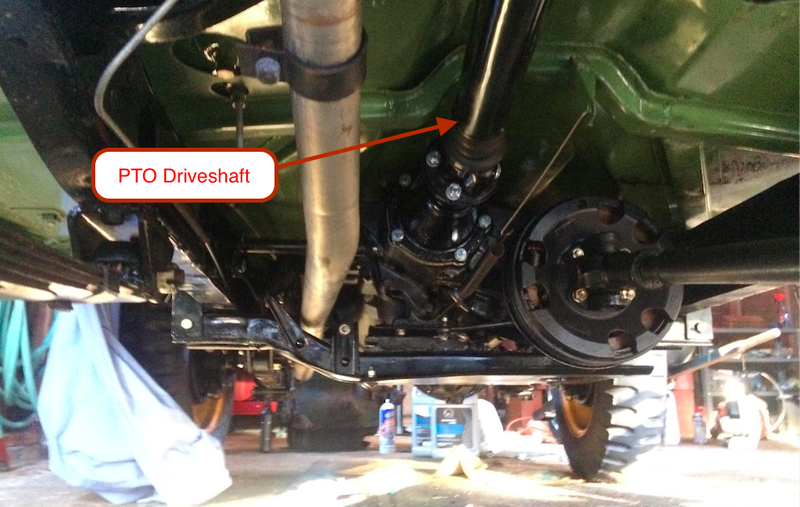

With that PTO shifter bolted on, you can then attach a driveshaft like this one:

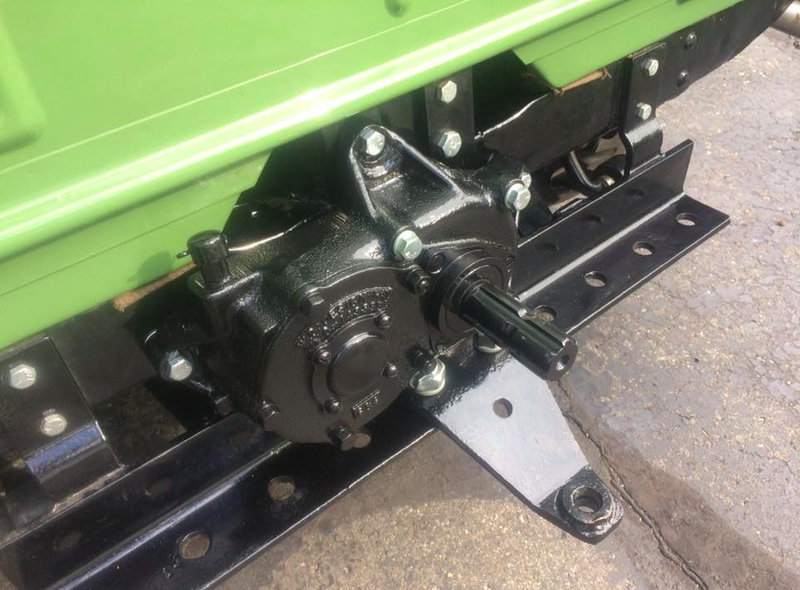

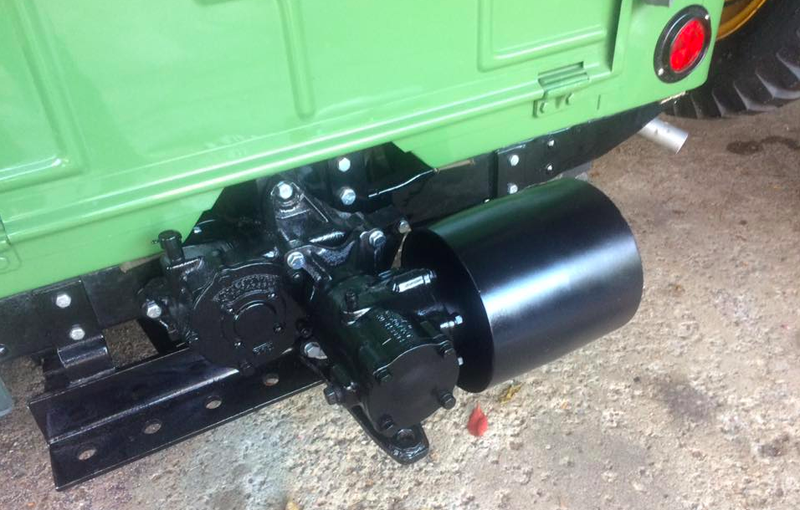

That propshaft then sends power to a gearbox mounted to the rear bumper:

Photo by Brandon

Advertisement

And once that’s hooked up, you can hook up all sorts of attachments, like this belt pulley, which can power a number of different implements:

Photo by Brandon

An example of such an implement? A circular saw:

Advertisement

Will Mahindra actually offer a PTO to bolt onto the back of that transfer case to make this Roxor the ultimate workhorse? Who knows, but based on the FAQ section on their website, things look promising:

Body And Dimensions

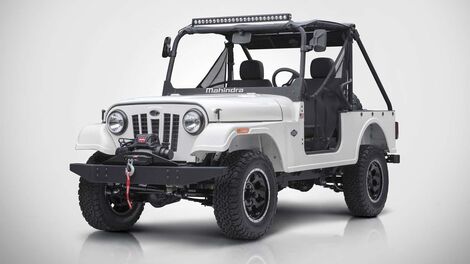

Credit:Mahindra

Advertisement

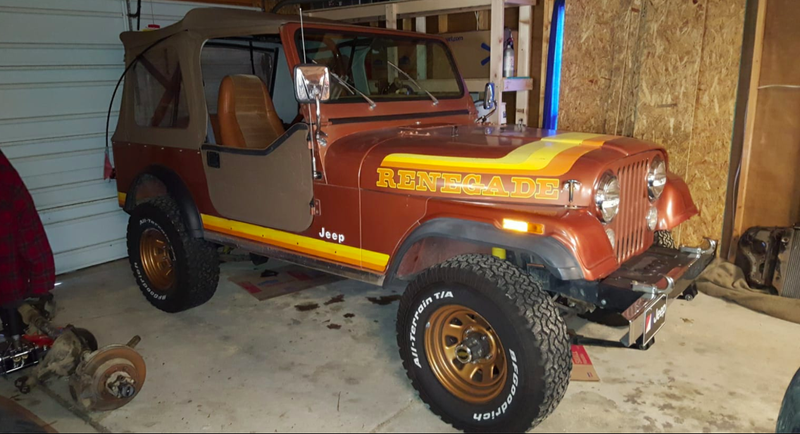

Though parts of it are clearly derived from a flatfender, the body—like the steering setup—definitely looks more similar to a CJ-7 than to a flatfender like a CJ-3B. The rounded front fenders and the filleted door opening that makes a sharp right angle to the top of the rear tub was clearly inspired by a CJ-7 like the one shown below.

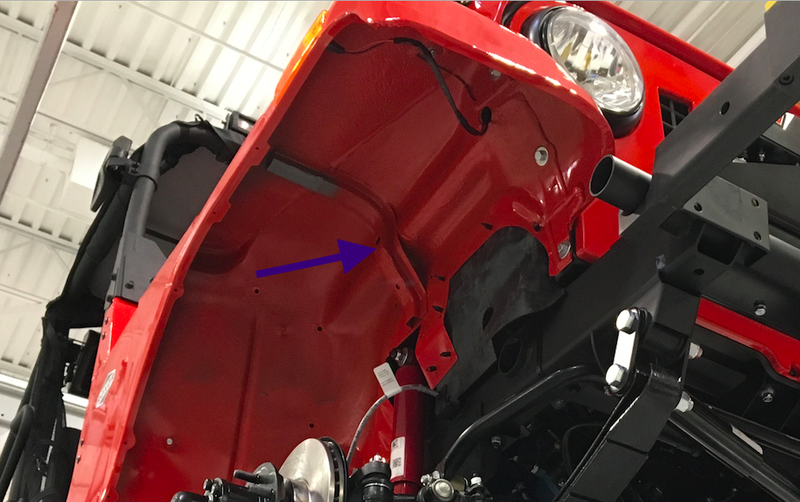

But though it looks quite CJ-7-ish, there are little features on the body that do exude flatfender. For example, take a look at the hat-channel fender support:

Advertisement

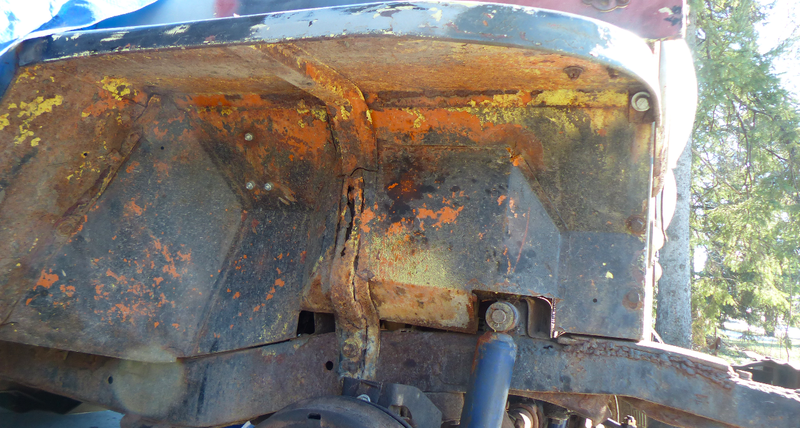

That looks quite similar to the one on my CJ-2A (minus the rust), even if it doesn’t appear to be mounted to the frame:

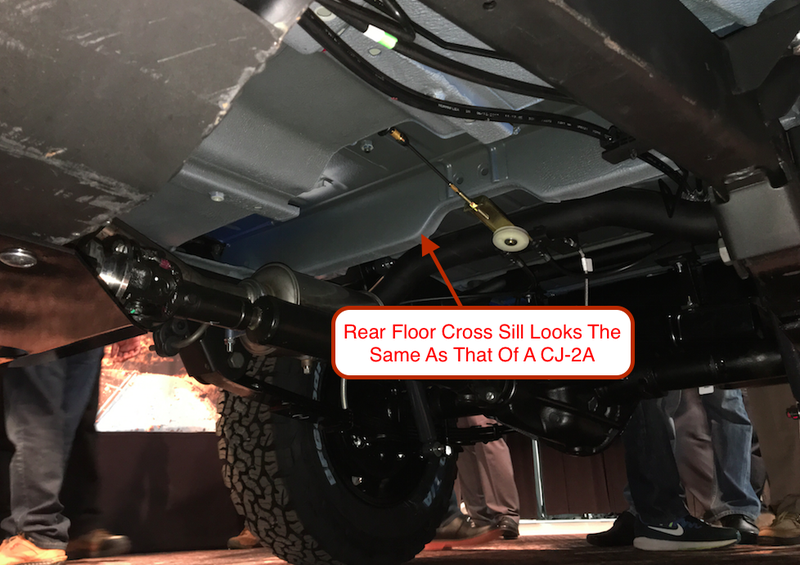

Plus, have a look at the rear floor cross sill:

Advertisement

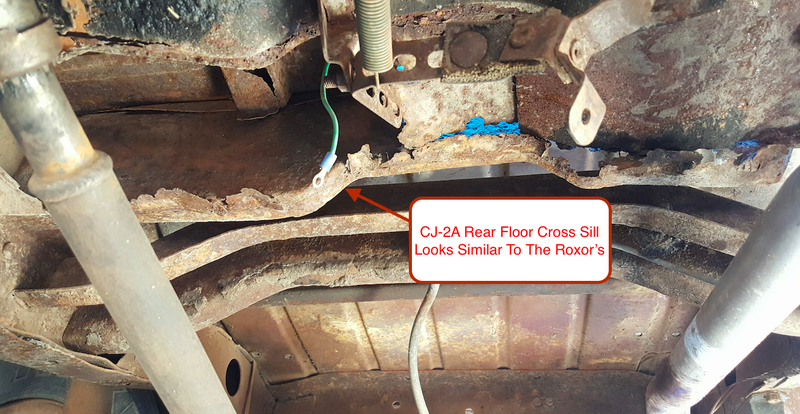

That shape looks quite similar to the rear floor cross sill in my CJ-2A:

And if that extremely rusty cross-sill in the picture above doesn’t have you convinced, here’s a video of a guy fabricating a new one for his old Willys:

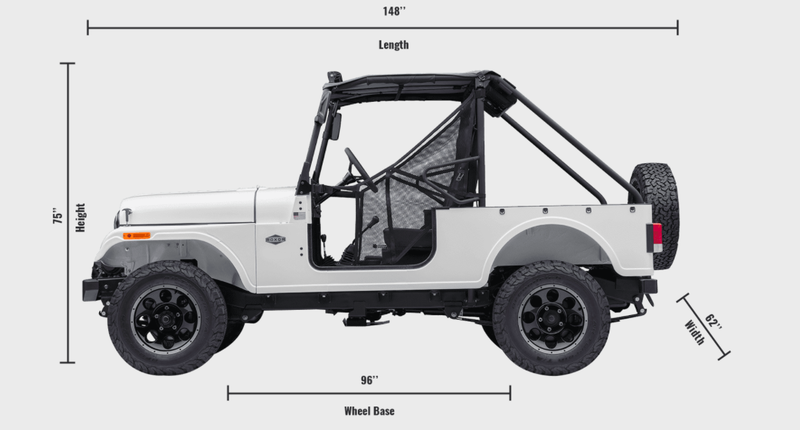

Dimensionally, the Roxor is closer to the CJ-7 than it is to CJ-3B, with its 96-inch wheelbase stretching a full 16-inches longer than the latter’s, but only 2.5-inches longer than the former’s. Overall length, too, is closer to that of a CJ-7, with the Roxor’s 148-inch stretch pretty much matching that of a CJ-7.

Advertisement

That said, the width of 62-inches go to show that the Roxor definitely seems like it was derived from the CJ-3B, which has essentially exactly the same breadth.

Engine and Transmission

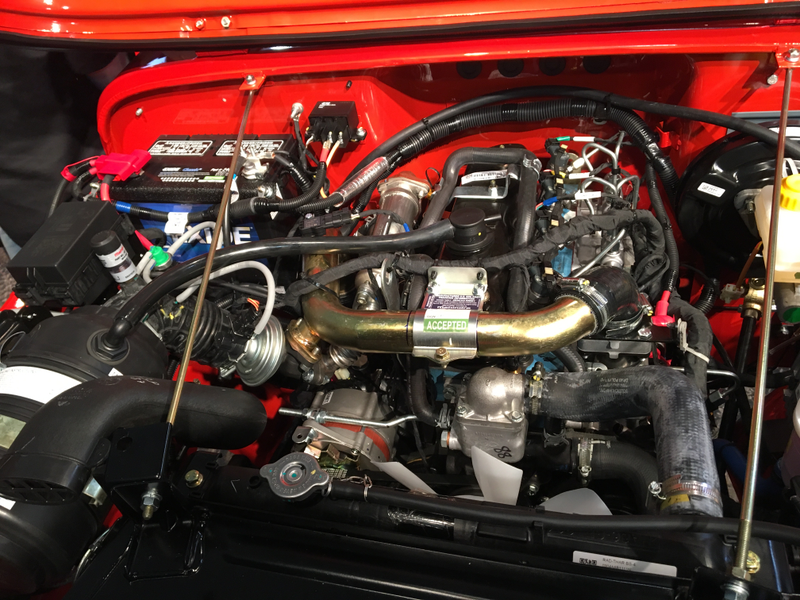

The Mahindra’s 2.5-liter diesel engine. Credit: Jason Torchinksy

Advertisement

Under the hood of the new Mahindra Roxor is a 2.5-liter direct-injected inline-four “M2DICR” diesel engine making 62 HP at 3,200 RPM and 144 lb-ft of torque at 1,400 RPM.

This is in no way a Jeep engine. That said, those power and torque are extremely similar to what the rare Perkins 3.1-liter four-cylinder diesel engine offered in the Jeep CJ-5 in the early 1960s. That motor cranked out exactly the same amount of horsepower—62—but it made it slightly lower in the rev range—3,000 RPM versus 3,200 RPM.

The torque figures are also quite similar, with the CJ-5 making only a single lb-ft less—at 143 versus 144—and that peak torque came in at 1,350 RPM versus 1,400.

Advertisement

Credit: Mahindra

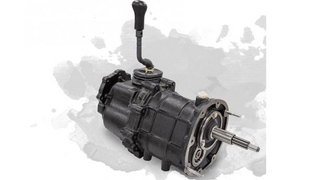

As for the transmissions, like later Jeep CJ-7s, the Mahindra gets a five-speed manual. No, its not the BorgWarner T-5 found in the CJ, rather, it’s a gearbox designed in India, according to a Mahindra representative. Still, it’s a five-speed, it’s 3.778:1 first gear ratio isn’t far from the CJ-7's 4.03:1, and it probably has nice, long throws just like the Jeep.

Credit: Mahindra

Advertisement

The Mahindra Roxor is definitely as mechanically Jeep-y as it gets, sharing quite a bit with the CJ-3B of the 1950s and 1960s. It’s got a similar transfer case, similar axles, a similar suspension and essentially the same width. As for the styling, steering setup, and overall length, those don’t quite look what’s on a CJ-3B, but they look almost identical to those of another CJ, the CJ-7.

And though the transmission and engine are not related to Willys Jeeps, their specs aren’t far from what was offered in some CJ models throughout the years.

So yes, when it launches, the Mahindra Roxor will be the most authentic “Jeep” you can buy (even though it’s not road legal)—even more so than the Wrangler. And that’s pretty wild if you think about it.
