Here's a Close Look At Some of the 2020 Jeep Gladiator's Mechanical Bits

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits

You’ve seen all the 2020 Jeep Gladiator’s sheetmetal. It’s pretty. But who cares about that; what we want to see is the hardware, and while much of it is common with the Jeep Wrangler JL, there’s plenty that isn’t. Let’s take a dive under this beast.

Advertisement

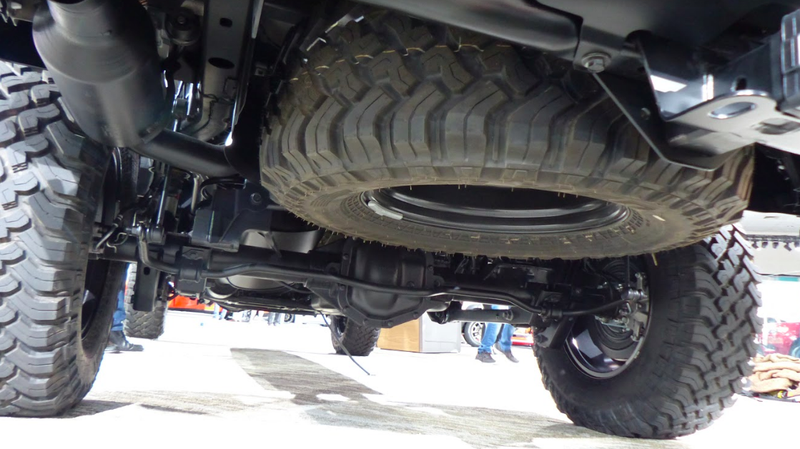

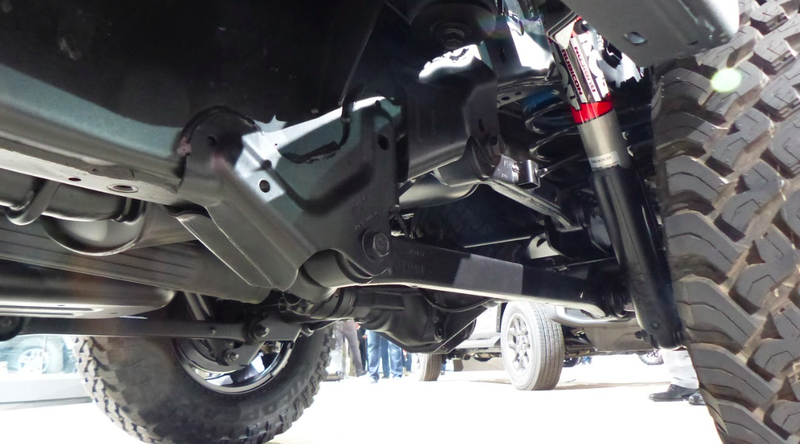

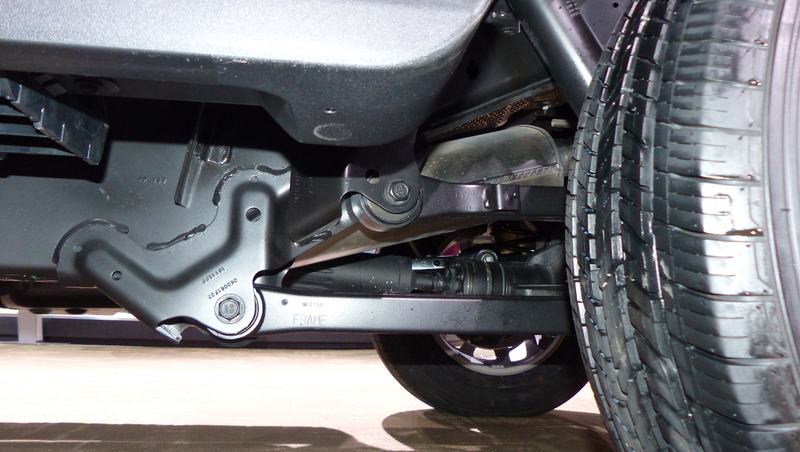

Let’s start with the rear suspension, because it’s a bit different than that of the JL. Here’s the five-link Jeep truck rear suspension:

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement

And here’s the JL Wrangler’s:

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits

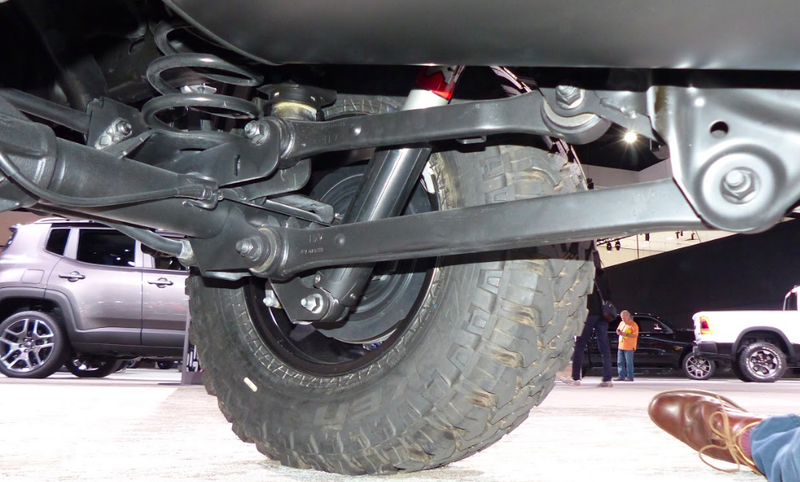

Another look at the truck’s control arms from the outside:

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement

And here’s the Wrangler’s:

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement

The Dana 44 axles are essentially the same between the two vehicles, though the control arms, control arm brackets, and spring perches are clearly different, and Jeep told me via email that the JT has added reinforcements to handle trailering loads.

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement

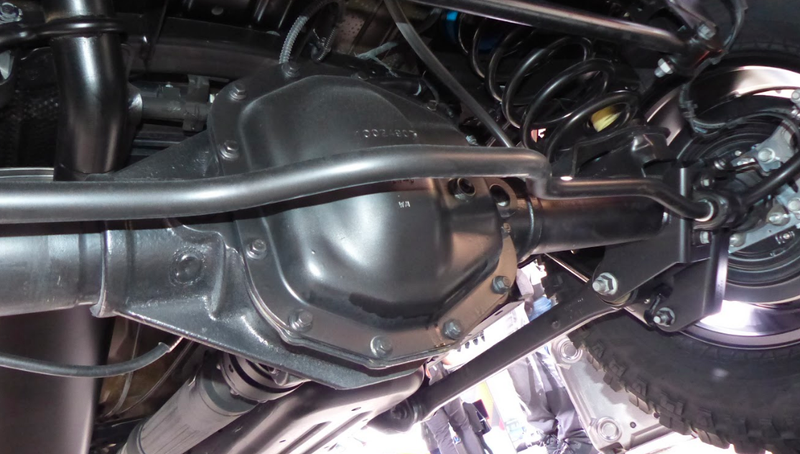

Here’s a close look at that axle:

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement

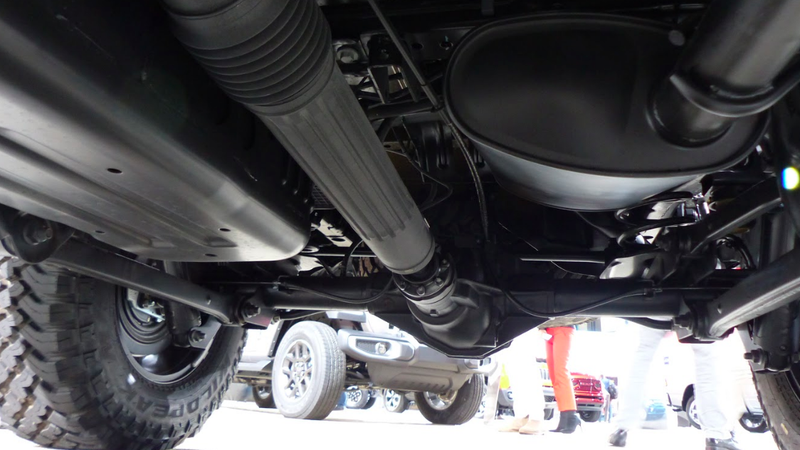

And from the front looking down the length of the rear driveshaft:

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement

Armor. There’s lots of it. The important chunks of steel are the rock rails for the giant rocker panels (this thing’s got a huge wheelbase) and the skid plates for the long belly. And then there are the metal bars on the rear to protect the big overhangs:

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement

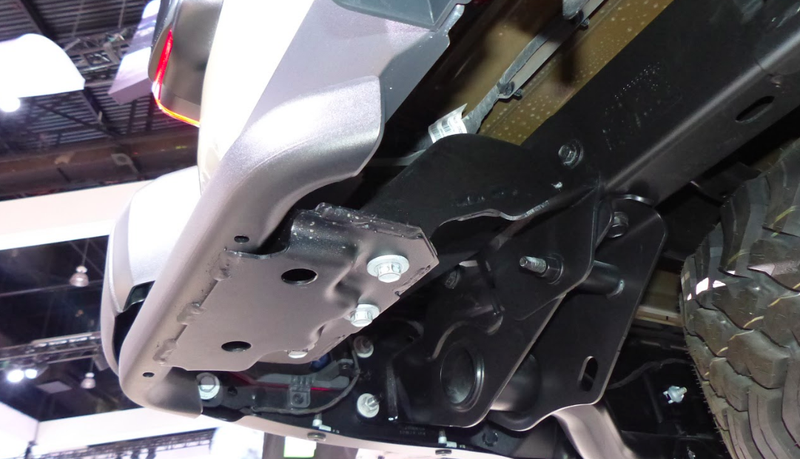

Here’s how it ties into the frame:

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement

Here’s another angle:

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement

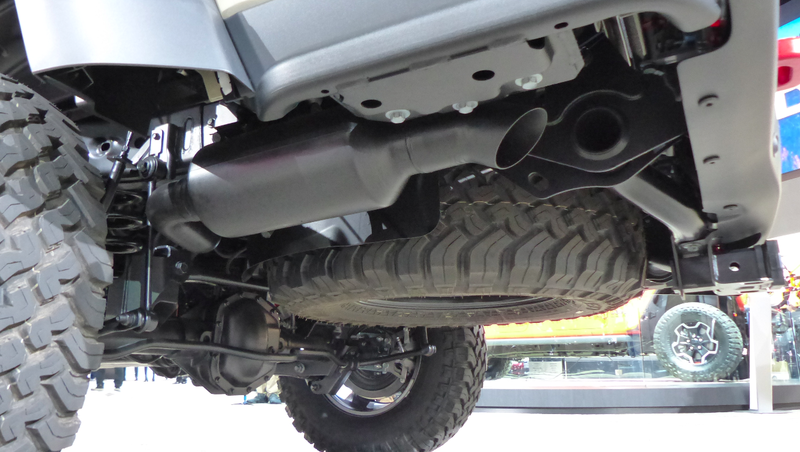

Here’s the rear axle and the rear bumper bar together in one shot; the three silver bolts are fasteners for the bar that protects the bedside:

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement

Speaking of beds, let’s have a close look at it:

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement

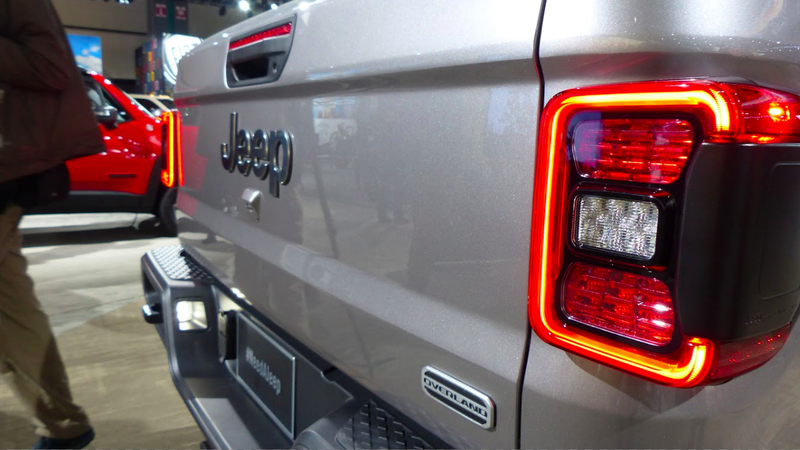

The aluminum tailgate, I think, is rather boring. There’s no “Jeep” stamping like there is on the Gladiator of yore. Instead, there’s just a cheap badge stuck on:

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement

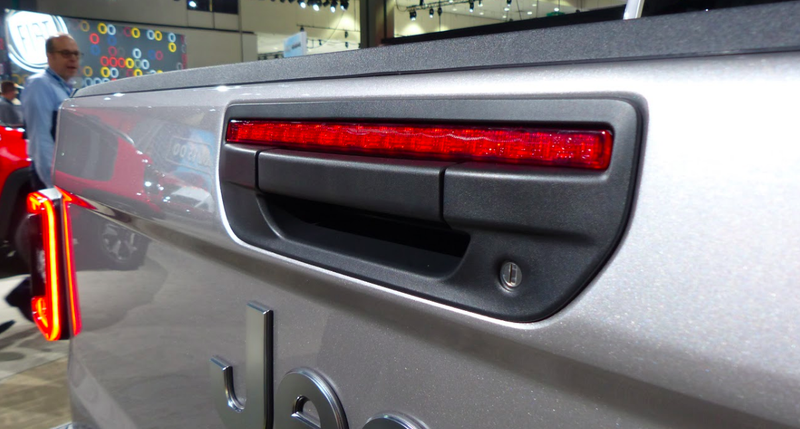

One thing I do like, though, is the center high mounted stop lamp integrated into the handle assembly:

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement

Here’s a fun feature that may or may not be useful: the tailgate has a halfway-up position to accommodate a second tier of loading:

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement

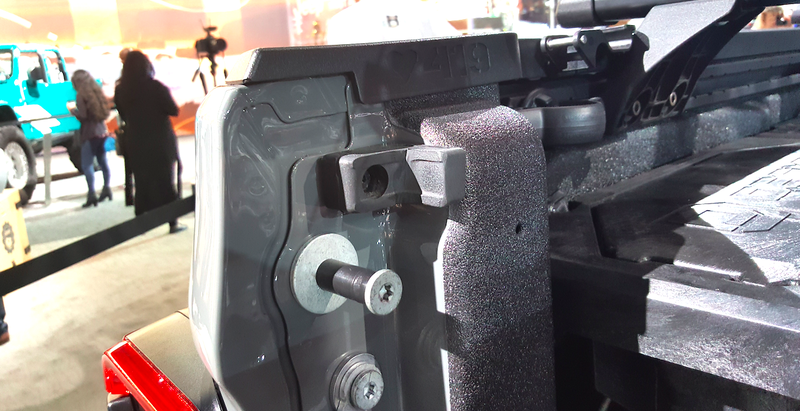

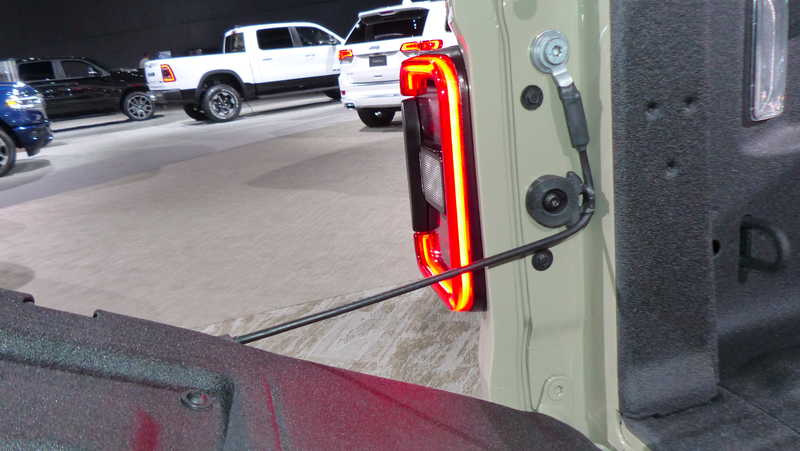

That tailgate is held up by simply looping the tailgate straps around a plastic piece on the inside of the door jamb:

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement

Also in that door jamb area is a heart and the number 419—the area code of the Toledo plant where the JT is built:

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement

Here you can see where the wood boards would sit for the second tier of loading—right in that notch on the wheel well:

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement

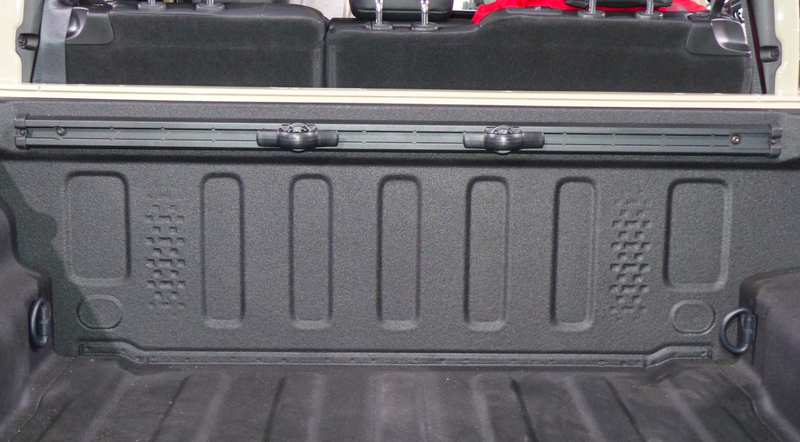

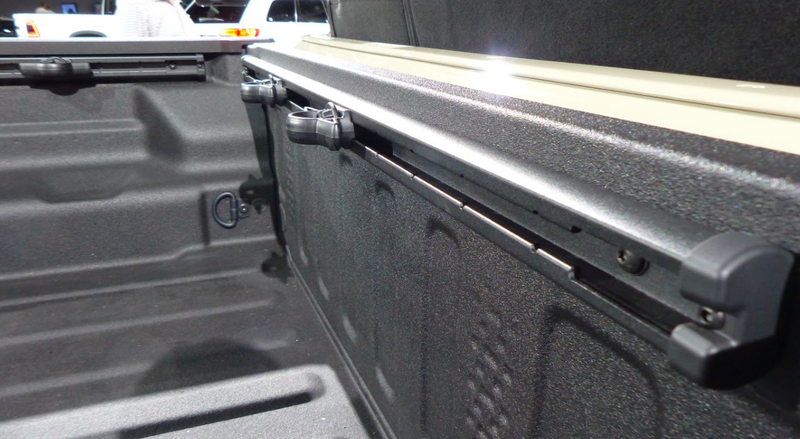

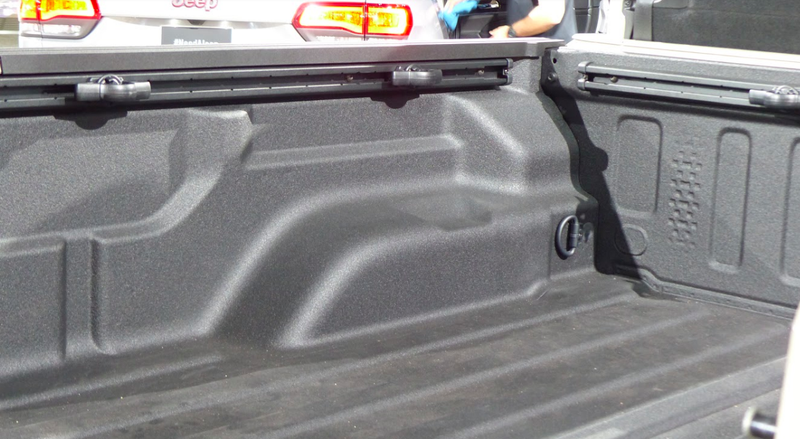

Also back there you can see the sliding tie-down locations on rails, as well as some dimples on the very front of the bed, which are meant to represent where a dirt bike’s wheels might sit:

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement

Another look at the dimples:

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement

Here’s the full bed as viewed from an open tailgate:

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement

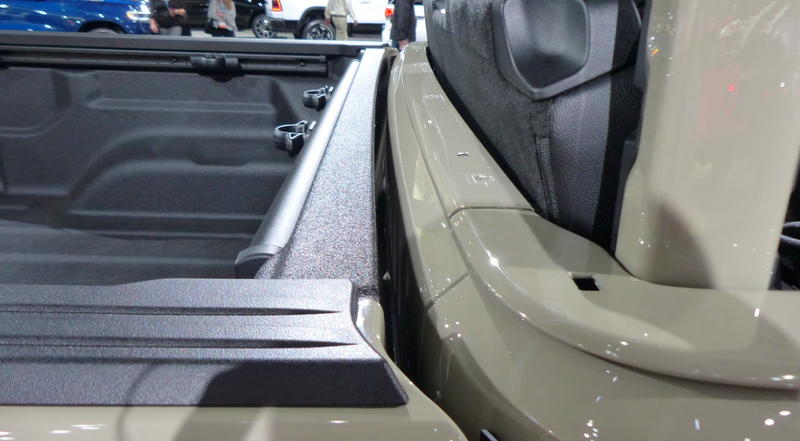

Here’s the gap between the cab and the bed. Notice the very Wrangler-ish rounded off cab:

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement

And here’s the tiny window on the back of the cab (well, technically on the back of the hard top):

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement

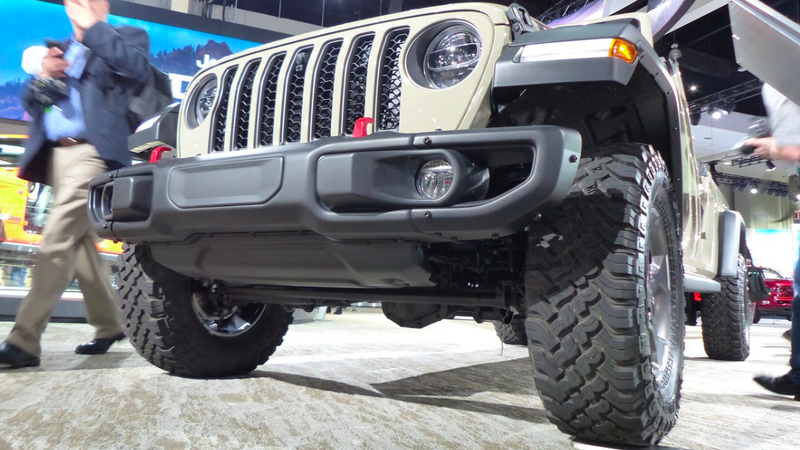

As for the front suspension, it looks the same as that of a JL.

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement

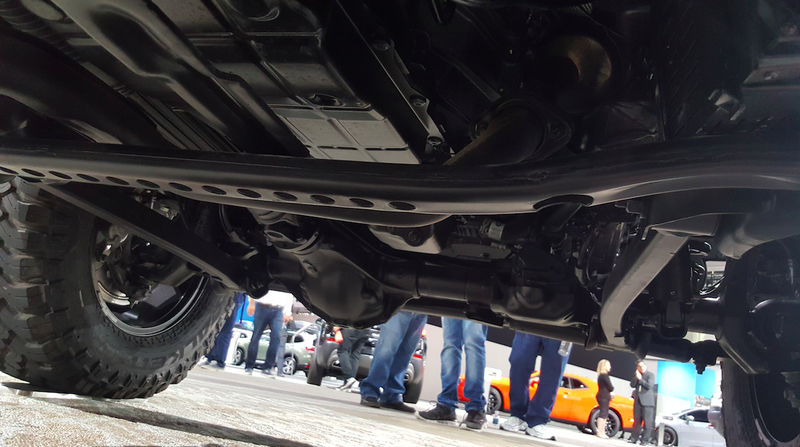

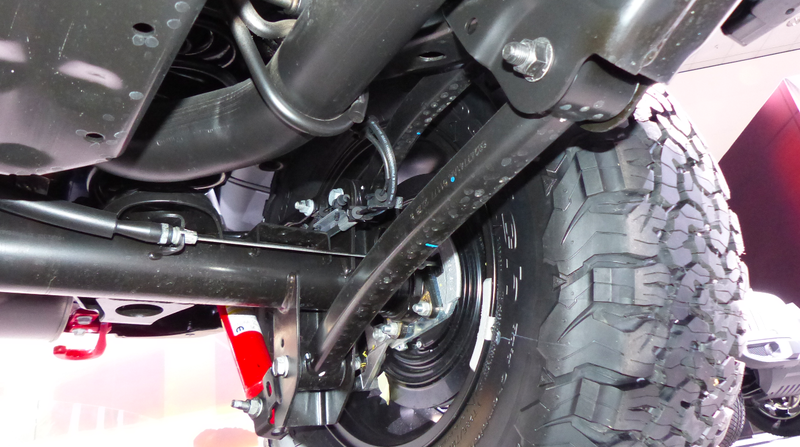

Much of the front bits is hidden by the belly pan, so here’s a look from the rear:

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement

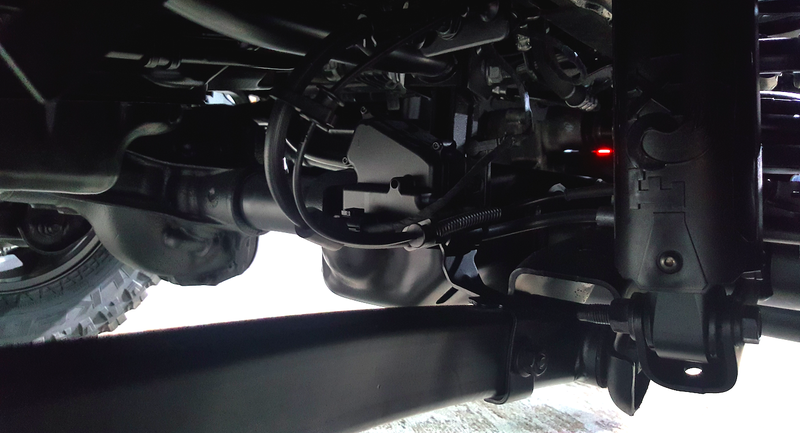

And this is a close up glance at the front axle disconnect shared with the JL:

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement

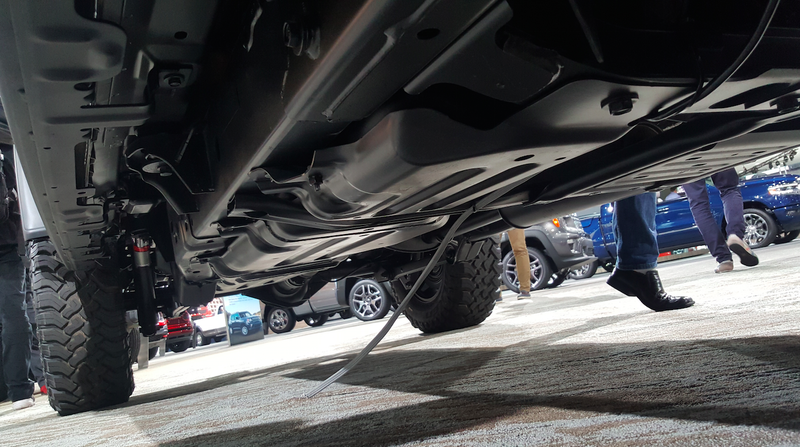

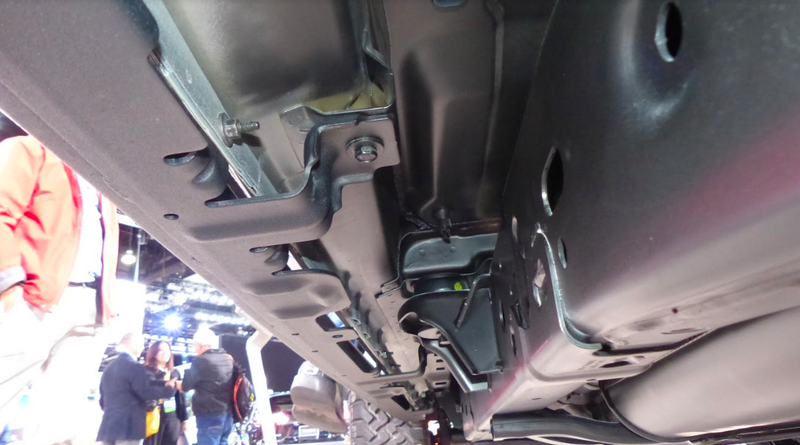

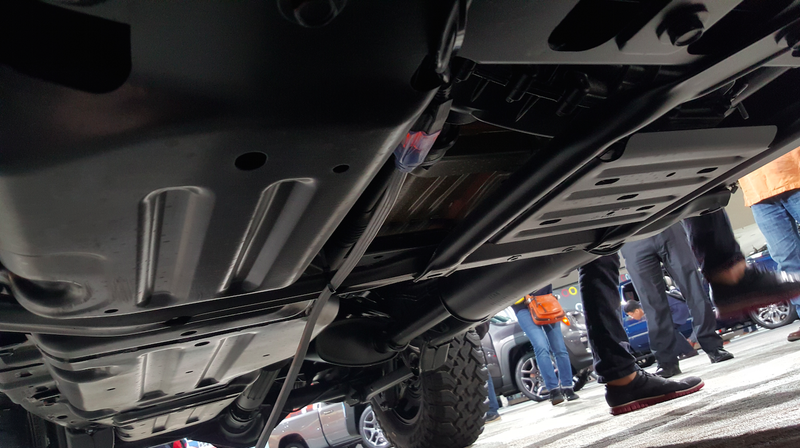

The skid plating under the belly looks thorough. You can see that in this picture, and you can also see the rock rail mounting provisions on the left:

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement

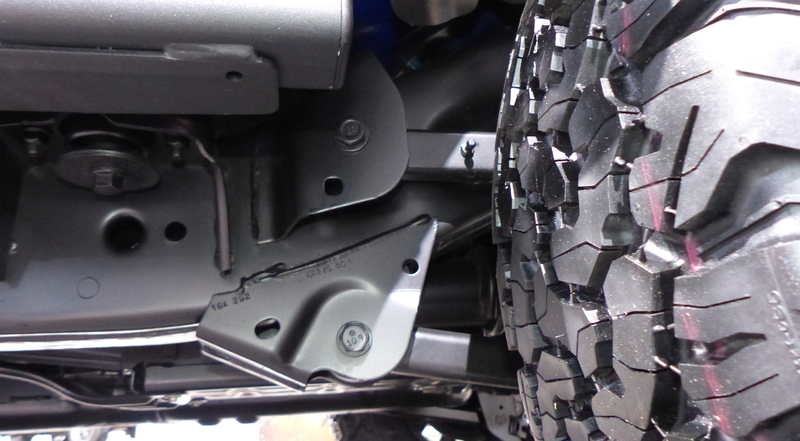

The rock rail mounting locations:

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement

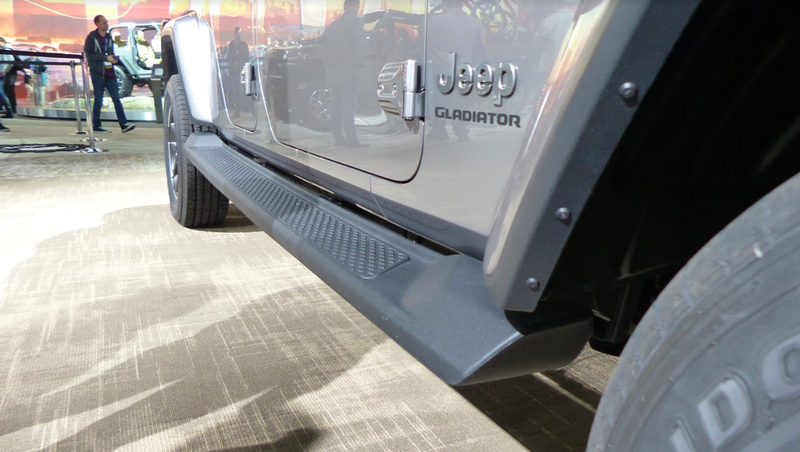

Though if you don’t get the Rubicon, you can get these big, awkward side steps:

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement

Below, you’ll see the fuel tank skid on the left, and the transfer case skid on the right:

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement

Here’s an up-close view of that transfer case skid. If you peek closely, there’s a single bar that runs under the transmission just in front of the T-case:

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement

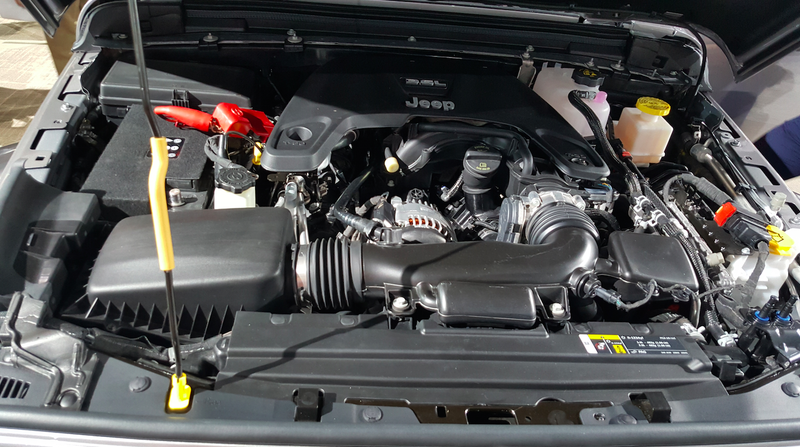

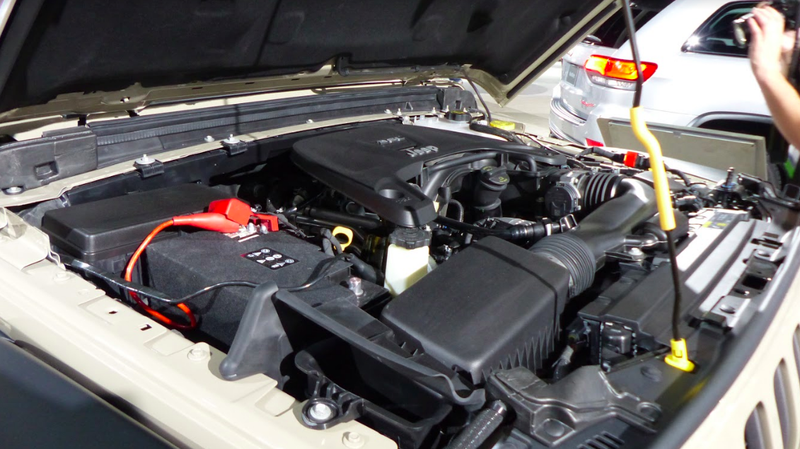

I didn’t spend much time investigating the engine bay, as I figured it’d be largely the same as what a JL’s engine bay looks like, but here’s the Pentastar Upgrade motor:

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement

Another angle showing the air intake:

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement

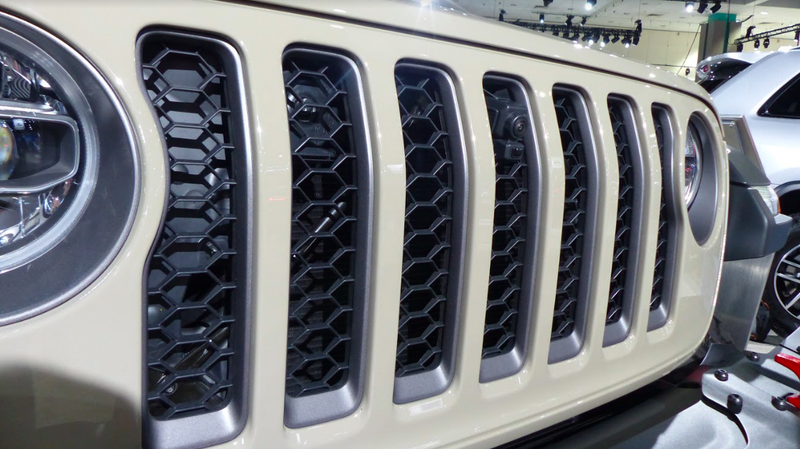

That engine gets its cooling through a grille with wider slots and more open grille texture:

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement

Take a gander at some interior photos, too. Here’s the fancy Overland:

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement

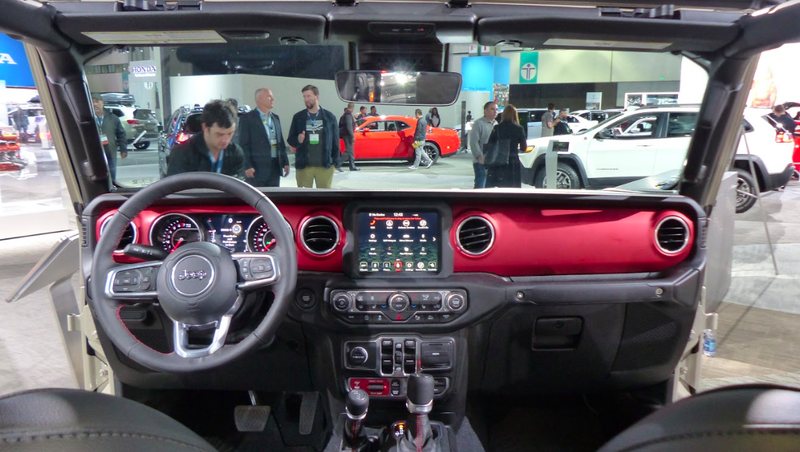

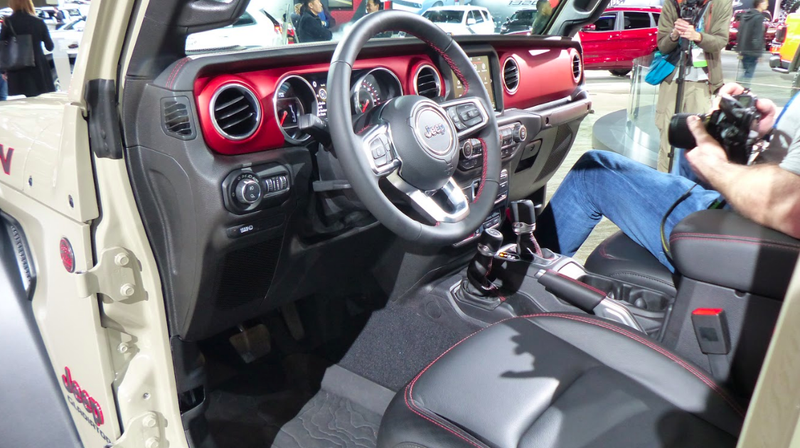

This is the Rubicon:

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement
Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits

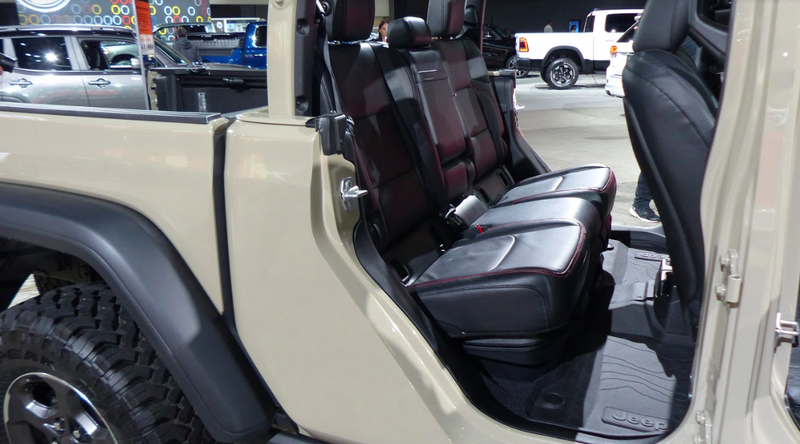

Here’s the rear bench, which—based on 30 seconds in it—felt a bit too upright. I’ll have to get more time in it to be sure:

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement

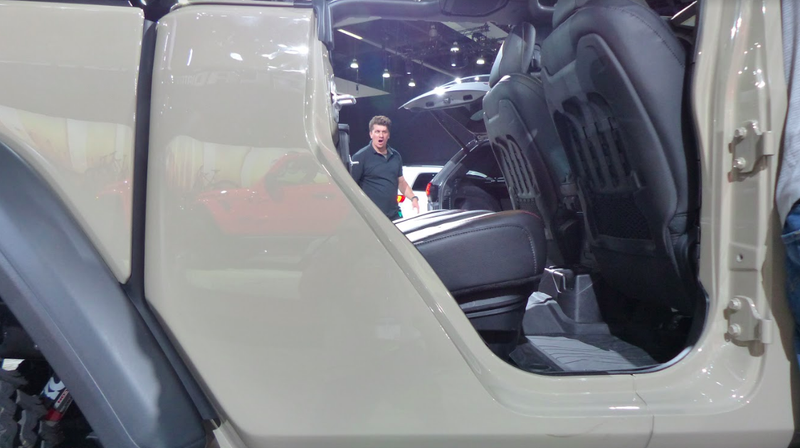

This is one of the stranger parts of the cab—a big, flat, largely featureless area at the lower rear of the side of the cab:

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement

Finally, a few miscellaneous shots:

Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement
Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement
Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement
Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement
Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement
Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
Advertisement
Illustration for article titled Heres a Close Look At Some of the 2020 Jeep Gladiators Mechanical Bits
