The new 2011 Ford Mustang is putting the Camaro on notice with two new transmissions and a new all-aluminum 3.7-liter Duratec V6 making 305 HP and returning 30 MPG. Are you ready for the Pony Car Wars?
Here's the thing about V6 pony car variants, until very recently they were the "other" car to the V8 model. V6 Mustangs have long been reserved for high school cheerleaders and overweight middle managers. They were bark with no bite, style with no substance. The Camaro was the first car to buck that trend, offering a very well received 300 HP V6 returning 29 MPG. Of course, at Ford, this kind of challenge was not taken sitting down.
Meet the 3.7 liter Duratec V6, it makes 305 HP and 30 MPG. See, even in the V6 segment the pony car wars are still going. The 3.7 is the first rear-wheel-drive application for this engine family, in simple terms it's a punched-out 3.5 liter, except this one's got some considerable upgrades. While it's still a port injected engine, it's a cast aluminum 60 degree V-engine (replacing the 90 degree outgoing engine) with four-valves-per-cylinder, variable valve timing on both the intake and exhaust with cam's capable of up to 60 degrees of phasing on the intake and 50% on the exhaust. The system operates on oil pressure and the actuators and pressure cavities are integrated with the camshaft bearing endcaps. Keeping parts integrated keeps the engine compact, it's actually smaller and lighter than the outgoing engine while making more power. If you don't care for changing the oil, the new V6 goes 10,000 miles between changes, so that's pretty interesting.
In addition to the new V6, there's a pair of new transmissions. Ford's ditching the iffy Tremec in favor of a manual 6-speed Getrag co-developed with Ford called the MT82. Its claim to durability and smoothness fame is that all gears on all shafts ride on needle bearings. There's also a new auto, an all-Ford 6-speed automatic transmission called the 6R80. It's the same box that goes into the 6.2-liter equipped Ford SVT Raptor with different guts. It's capable of paddle shifters but not so equipped in this application. It also jives with engine controls to do what Ford calls "tip in control" which eliminates gear shift "thunk" by adjusting torque output as the trans shifts.
Finally, just because the powertrain is the big story with the 2011 Mustang V6 doesn't mean there's aren't significant upgrades elsewhere in the car. Standard now are GT disc brakes all around, optional 19 inch wheels, stiffer bushings, bigger stabilizer bar, dual exhaust standard, low rolling resistance tires, and 7% better aerodynamics because fascia tuning, an underbody tray and wheel spats. Anyone who's been in the convertible knew cowl shake was a problem, and as such Ford's stiffened things quite a bit, the 2011 is over 1000% stiffer than the 2010. That's not a typo. The improvements come in underbody and cowl cross-bracing and structural foam injected into the door pillars. 1000%, pretty impressive.
The inside also gets some tweaks, but nothing big, fold down rear headrests to comply with new head restraint requirements while allowing for the option of unsucky rear visibility. The gauge cluster graphics also get revised and there's also a trinkety accessory clip for the passenger sunvisor which allows you to clip in stuff like sunglasses holders or tissue holders or what-have-you. Things we're not interested in.
What we are interested in is the rather off-hand comment from one of the engineers regarding the track pack. Optional on the V6, the track pack turns things up a notch and makes it a track-day special. Said unnamed engineer mentioned there's a distinct possibility the track-pack equipped V6 will not only stick with the V8 track-pack 'Stang, it might even outrun it. Well, we would certainly be happy to test that theory out.
2011 Ford Mustang V-6 Goes High-Tech: New 305-HP Engine, Six-Speed Transmission, Expected to Deliver 30 MPG Highway
Dearborn, Mich., Nov. 30, 2009 – The 2011 Ford Mustang puts 305 high-performance horses in the hands of V-6 coupe buyers with a new all-aluminum dual-overhead cam (DOHC) engine that delivers a projected 30 mpg on the highway with a six-speed automatic transmission and fun for drivers on nearly every road.

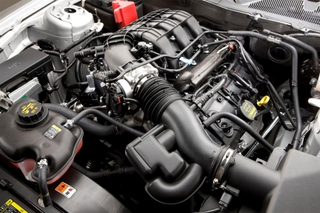

For 2011, Mustang's new 3.7-liter Duratec 24-valve V-6 uses advanced engineering to deliver its power and economy: Twin Independent Variable Camshaft Timing (Ti-VCT) adjusts the valvetrain in microseconds. Aluminum construction means light weight. It's an engine designed to crank out torque down low, rev to 7,000 rpm and deliver the mechanical music sports coupe lovers crave everywhere in between.
"Mustang is completely transformed with this new engine," said Derrick Kuzak, group vice president, Global Product Development. "Everything people love about the car is still there and now under the hood is a V-6 engine that uses premium technology to deliver the power, the feel, the fuel efficiency, even the sound of the best sports coupes in the world."

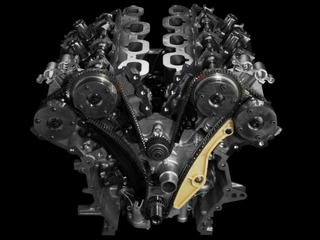

New 3.7-liter V-6 engine
With Ti-VCT operating its four valves per cylinder, the new Mustang V-6 powerplant sends significantly more horsepower and torque (305 hp and 280 ft.-lb.) to the rear wheels than its predecessor – despite its smaller displacement. The behind-the-wheel feel is unlike any Mustang ever produced.
"This new V-6 engine really speaks to what Mustang is all about," said Barb Samardzich, Ford vice president of global powertrain engineering. "It produces power everywhere in the rev range and loves to be pushed hard. The Duratec 3.7-liter builds on our promise to use advanced technology to deliver both power and fuel economy."
The high output is due largely to Ti-VCT which allows variable control of valve operation across the rev range. The variable cams operate on a Direct Acting Mechanical Bucket (DAMB) valvetrain using polished buckets and roller finger followers to reduce friction. The end result is as much as a 3 percent improvement in fuel economy and a 10 percent improvement in power output versus traditional engines without these advanced features.
Ti-VCT is complemented by special-tuned composite upper and lower intake manifolds for efficient air delivery and lighter weight. Ignition power is delivered by a high-energy coil-on-plug design, while piston-cooling jets and a lightweight die-cast aluminum cylinder block improve the durability and efficiency of the 3.7-liter V-6 design.
Performance was the mantra for every aspect of engine design. A cold air induction system and dual exhaust give the 3.7 its free-breathing style with a 7,000 rpm redline and near-instantaneous response to throttle inputs.
A die-cast aluminum deep-sump oil pan provides 10,000-mile oil change intervals, saving drivers money on maintenance and resulting in less waste in oil disposal.
Engineers also worked to ensure aggressive, high-performance sounds come from the new engine, from intake to exhaust. Not only does the retuned air intake system minimize losses, it also provides the driver with a satisfying intake rush on hard acceleration. The all-new dual exhaust system is mellow at idle but opens up with a howl at full-tilt, letting Mustang drivers know they're behind the wheel of a world-class sports coupe.
"This car marks a new type of Mustang," said David Pericak, Mustang chief nameplate engineer. "We're using a high-performance quad-cam V-6 with all the bells and whistles in a car that's become legendary for its handling and roadholding; it's really going to get a lot of new sports coupe fans excited about Mustang, some for the first time ever."
Drivers can get the most out of the new V-6 engine's output using either an all-new six-speed manual gearbox or a six-speed automatic transmission. Both come with the flexibility and fuel economy benefits of six forward ratios regardless of whether buyers want to shift for themselves or not.
Drivers who prefer a manual gearbox will enjoy the short throws and direct feel of the shifter along with the relaxed cruising permitted by the extra top gear ratio. Customers choosing the automatic will be pleasantly surprised to find the advanced six-speed 6R60 transmission does not sacrifice fuel economy – or performance – for convenience, delivering an expected 30 mpg highway with crisp, quick shifts that maximize torque and horsepower.
The automatic transmission also features a grade-assist or "hill mode" to improve drivability on hilly terrain. This technical innovation uses vehicle input – acceleration, pedal position, vehicle speed and brake status – to automatically determine the correct gear ratio while on an incline or decline. Hill mode eliminates sixth gear, extends lower gear operation on uphill climbs, and provides additional grade or engine braking for coast downs.
The standard 2.73 rear axle provides an ideal blend of cruising fuel economy and acceleration, aided by the wide ratio spread permitted through the use of six forward speeds in the gearboxes. Performance enthusiasts can select an available 3.31 rear axle ratio for better off-the-line launch characteristics.
Fuel economy improvements
Extra horsepower and refined engine operation will be the most noticeable features to new 2011 Mustang 3.7-liter V-6 buyers while projected class-leading fuel economy, also a standard feature, offers an additional bonus. The numbers speak for themselves:
19 mpg city/30 highway with six-speed automatic transmission, up from 16 mpg city/
24 highway on the 2010 model with automatic – a 25 percent improvement over 2010
18 mpg city/29 highway with six-speed manual transmission, up from 18 mpg city/26 highway on the 2010 model with manual
Refinements throughout Mustang's body, powertrain and chassis design contribute to the improved fuel economy numbers. Examples include:
The new Electric Power Assist Steering (EPAS) system which eliminates the drag of an engine-operated hydraulic power steering pump
Six-speed transmissions that allow lower cruising revs without sacrificing off-the-line performance
Aerodynamic improvements such as a new front fascia, tire spats on the rear wheels, modified underbody shields, a taller air dam and an added rear decklid seal
Handling and driving dynamics
With so much additional horsepower standard, the 2011 Mustang received enhancements to its chassis to maintain the outstanding balance and driving behavior Mustang owners expect. Damper tuning and spring rates were revised to provide a smooth highway ride while a new rear lower control arm and stiffened stabilizer bar bushings improve stiffness and handling for better cornering response.
While Mustang's aerodynamic improvements were designed mainly to improve fuel economy, engineers also adjusted the vehicle's front/rear lift balance. The result is a car that tracks more securely and feels more "planted" to the road surface at higher speeds, helping to keep the tires in better contact with the pavement.
The addition of EPAS marks a new era in driving dynamics for Mustang owners. Steering effort at parking lot speeds is reduced, while high-speed and highway feel is improved for more precise steering and handling. Because the belt-driven power steering pump is eliminated, EPAS provides a quieter vehicle with fewer components drawing engine power.
EPAS also enables new technologies that adjust for minor driving annoyances. Pull-Drift Compensation adjusts the steering to correct for crosswinds and minor road crowning, while Active Nibble Control helps eliminate the "shimmy" felt at high speeds when a wheel is out of balance or a brake rotor is warped. Both conditions are alleviated by EPAS independent of driver input, helping ensure Mustang delivers a smooth, comfortable driving experience in all conditions.
Mustang buyers choosing the new V-6 will also get a standard limited-slip differential that provides better handling and more sure-footed grip in poor weather conditions by directing engine torque to the rear wheel with the most traction. When the time comes to slow things down, the 2011 Mustang is also equipped with larger four-wheel ABS disc brakes, with 11.5 inch front and 11.8 inch rear rotors.
Refinements complement advanced features
To reinforce the sporty nature of the 2011 Mustang, all V-6 models will come standard with new instrument cluster graphics, including a speedometer that reads up to 160 mph and a tachometer that reads to 8,000 rpm, reflecting the free-revving style of the new engine.
Additional lightweight soundproofing measures help filter unpleasant, high-frequency noises while tuned intake and dual exhaust add the sounds Mustang buyers relish.
Occupants also benefit from new door seals and a rear wheel arch liner that reduce road noise for a quieter, more enjoyable drive, all with minimal weight gain compared to the 2010 model.
Enthusiasts who want a premium performance-oriented Mustang V-6 can opt for the new Performance Package, which will be available August 2010. Designed for driving enthusiasts, the Mustang V-6 Performance Package comprises:
A 3.31 rear axle ratio for quicker off-the-line acceleration
Firmer Mustang GT suspension
Summer performance tires for improved grip
A strut tower brace for increased chassis rigidity
Unique electronic stability control calibration with sport mode for performance driving
For 2011, Mustang also ups the ante on technology and convenience features, including a standard driver's message center in the instrument cluster and integrated blind-spot mirrors in the side-view mirror housings.
Ford's MyKey™ system, designed to encourage safer teen driving and safety belt use, also is newly available on Mustang. MyKey allows owners to program the vehicle key using the driver's message center to incorporate features such as limited top vehicle speed and audio volume, a traction control system that cannot be deactivated, a persistent Belt-Minder® safety belt reminder and various speed alert chimes.
Top safety marks expected
Mustang's technological advances are also incorporated in the structure of the vehicle to improve safety. The 2010 Mustang coupe earned the U.S. government's top five-star crash-test rating, a designation the 2011 model is expected to achieve.
The Mustang's considerable body stiffness contributes to the coupe and convertible's driving performance and has a parallel benefit in accident protection. While the coupe's body structure is approximately 31 percent stiffer than the previous Mustang platform, the convertible's is more than twice as stiff – creating a structure that helps protect the cabin from deformation and intrusion in an impact.
Mustang also uses high-strength steel in its body structure and ultra-high-strength steel in the door intrusion beams for additional side-impact protection.
The front structure's crush zones are computer-designed to absorb energy in a controlled manner and help dissipate it before it can reach the passenger compartment. Ford engineers have run thousands of design iterations of the Mustang's front rails to arrive at an octagonal shape that helps spread crash forces evenly to aid in protecting occupants.
State-of-the-art technology adds to the convenience and safety of the 2011 Mustang, from the availability of the latest version of Ford SYNC®, with applications such as Traffic, Directions and Information, 911 Assist™ and Vehicle Health Report, to standard AdvanceTrac® Electronic Stability Control, which complements the all-speed traction control and standard Anti-lock Braking System (ABS).
Additional standard safety equipment includes the Personal Safety System™ which features dual-stage driver and front passenger air bags, safety belt pretensioners and Belt-Minder.
The 2011 Mustang will be built at the Auto Alliance International Plant in Flat Rock, Mich. The new 3.7-liter V-6 will be built at Ford's recently retooled Cleveland Engine Plant No. 1.
Twin Independent Variable Camshaft Timing (Ti-VCT) Helps Make 2011 Ford Mustang V6 a True Thoroughbred
-Ti-VCT technology key to Mustang's new 3.7-liter V-6 engine's flexibility, delivering
305 horsepower and a projected 30 mpg highway with six-speed automatic transmission –
no other vehicle in the industry can beat that combination
-Variable camshaft timing uses oil pressure to adjust valve opening and closing events, providing improved off-the-line acceleration over non-VCT equipped engines
-Variable valve overlap from Ti-VCT provides better fuel economy and emissions, along with optimized cold-start operation vs. conventional engines
Dearborn, Mich., Nov. 30, 2009 – The heart of every Mustang is its engine, and beneath the hood of the new 2011 Ford Mustang V-6 beats a technological tour de force. Displacing 3.7 liters, the dual-overhead-camshaft (DOHC) 24-valve V-6 uses Ford's Twin Independent Variable Camshaft Timing (Ti-VCT) to produce 305 horsepower and 280 ft.-lb. of torque and is projected to deliver up to 30 mpg highway – a combination unbeaten by any other vehicle in the industry.
Customer benefits of Ti-VCT include extremely precise variable control of "valve overlap," or the window of time in which both the intake and exhaust valves in the engine are open simultaneously.
"This overlap control via Ti-VCT helps us eliminate compromises in the induction and exhaust systems," said Jim Mazuchowski, Ford manager of V-6 powertrain operations. "Drivers are going to notice improved low-speed torque and increased fuel economy and peak horsepower. Plus, there are benefits they won't notice, too, such as reduced emissions overall, especially at part-throttle."
The flexibility allowed by Ti-VCT means Mustang V-6 customers will experience:
Better off-the-line launch feel, with plenty of the low-end "grunt" for which Mustang is famous. Ti-VCT can deliver up to a 5 percent improvement in low-end torque and a 7 percent improvement in peak power versus non-Ti-VCT-equipped engines.
Improved fuel economy at all engine speeds resulting in projected 19 mpg city/30 highway with six-speed automatic transmission; 18 mpg city/29 highway with six-speed manual transmission. Ti-VCT alone can account for up to a 4.5 percent fuel economy improvement over non-VCT-equipped engines.
Lower emissions, with better control of NOx and HC throughout the range of engine
operating speeds, reducing atmospheric pollution.
How the technology works
As a DOHC design, the 3.7-liter V-6 uses two camshafts per cylinder bank – one to open the intake valves and one to open the exhaust valves. Traditionally, camshafts only have been able to open the valves at a fixed point defined during engine design and manufacturing. But with modern variable cam timing systems, the camshafts can be rotated slightly relative to their initial position, allowing the cam timing to be "advanced" or "retarded."
Ti-VCT takes this technology and applies it to both the intake and exhaust camshafts of its DOHC design, using electronic solenoid valves to direct high-pressure oil to control vanes in each of the camshaft sprocket housings. By using one valve per camshaft, controlled by the Electronic Control Module (ECM), each intake and exhaust cam can be advanced or retarded independently of the other as engine operating conditions change, providing an exceptional degree of valve timing control.
The new 3.7-liter engine for the 2011 Mustang V-6 will be built at Ford's recently retooled Cleveland Engine Plant No. 1.
2011 Ford Mustang V6 Performance Package Boosts Handling, Braking; Car Now Road-Course Ready
- All-new 2011 Mustang V-6 joins the ranks of performance-tuned Mustang offerings worldwide; available Performance Package combines lightweight 305-horsepower all-aluminum V-6, a 3:31 performance rear axle and Mustang GT-based suspension and braking components
- Unique 19-inch wheels and Pirelli performance tires provide superb grip and aggressive appearance
- Electronic stability control calibration features Sport mode for high-performance driving and track-oriented events
Dearborn, Mich., Nov. 30, 2009 – Around the globe, Ford's performance-tuned cars are known to provide an uncompromised driving experience in a remarkably civilized package. Growing from that tradition, the new 2011 Ford Mustang V-6 will offer an optional factory-installed Performance Package that combines high-tech horsepower and a taut suspension in a package that will appeal to track-day fans and sports car aficionados alike.
Powered by the same 305-horsepower all-aluminum Ti-VCT V-6 as the new 2011 Mustang, the Performance Package takes advantage of the new engine's lightweight and high-revving nature to deliver a nimble performance car equally at home on a road course or a road trip.
"The new Performance Package delivers on fast, fun and affordable, combining the all-new 2011
V-6 with Mustang GT prowess," said Dave Pericak, Mustang chief nameplate engineer. "It's a true sports car for the new generation and a smart choice for the environmentally-conscious enthusiast. It is a perfect marriage of power, performance and value."
Borrowing from the Mustang GT, the Performance Package includes numerous suspension, braking and body stiffening upgrades to deliver unparalleled handling performance. That road-holding is helped by a near-equal front/rear weight distribution, providing exceptional transient response along with the car's slimmed-down curb weight of less than 3,500 pounds.
2011 Mustang Performance Package upgrades include:
A 3.31 rear axle ratio for quicker off-the-line acceleration
Mustang GT coupe front and rear stabilizer bars
Mustang GT front struts and rear shocks/springs
Shelby GT500 rear lower control arm
Unique 19-inch wheels
Pirelli performance tires for improved grip
Mustang GT front and rear brake calipers with Performance Friction pads
A strut tower brace for increased body rigidity
Unique electronic stability control calibration with Sport mode for performance driving
The 2011 Mustang V-6 Performance Package will be available beginning late next summer, built at the Auto Alliance International Plant in Flat Rock, Mich. The new 3.7-liter V-6 will be built at Ford's retooled Cleveland Engine Plant No. 1.
