Interesting Infographic Breaks 2015 Ford F-150 Down To The Atomic Level

Illustration for article titled Interesting Infographic Breaks 2015 Ford F-150 Down To The Atomic Level
Truck YeahThe trucks are good!

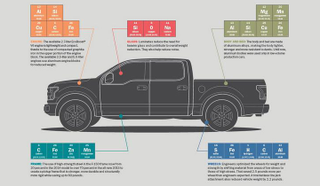

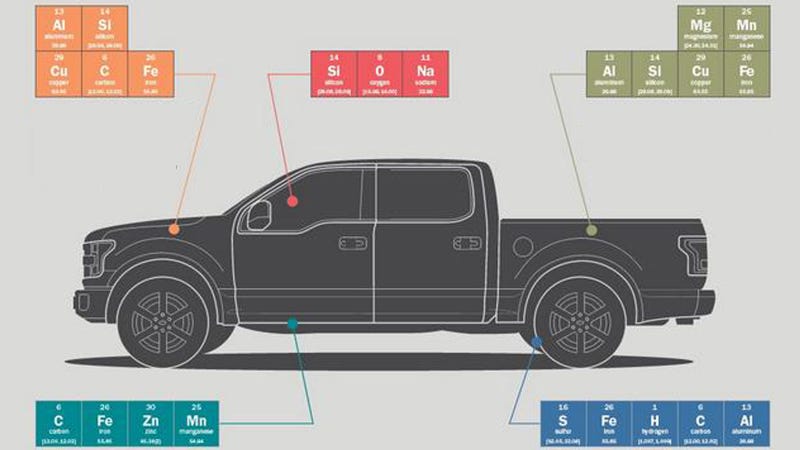

You've probably heard by now that weight savings was a priority in the the 2015 Ford F-150. But if there's any confusion left over what exactly the truck is made of, this neat chart should sort it out for you.

Advertisement
Illustration for article titled Interesting Infographic Breaks 2015 Ford F-150 Down To The Atomic Level
Advertisement

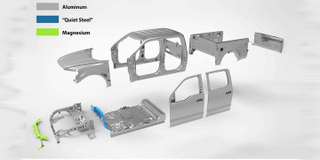

Here's another interesting illustration of the 2015 Ford F-150's body construction, highlighting how much aluminum is used on the body. From here, it looks like "a lot." Of course the frame, not pictured, is still made of steel.

Illustration for article titled Interesting Infographic Breaks 2015 Ford F-150 Down To The Atomic Level

Ford's marketing department sure is good at cranking these things out. Who doesn't love a good infographic?

Advertisement

Images from Mike Levine, Ford Communications
