DETROIT – The advanced cluster display in the Corvette Stingray can provide up to 69 unique sources of information, ranging from an interactive performance timer to a tyre thread temperature display.

The crisp and bright display features make this information easily accessible via three configurable modes that prioritise information for daily commuting, weekend canyon carving and track events.

Advertisement

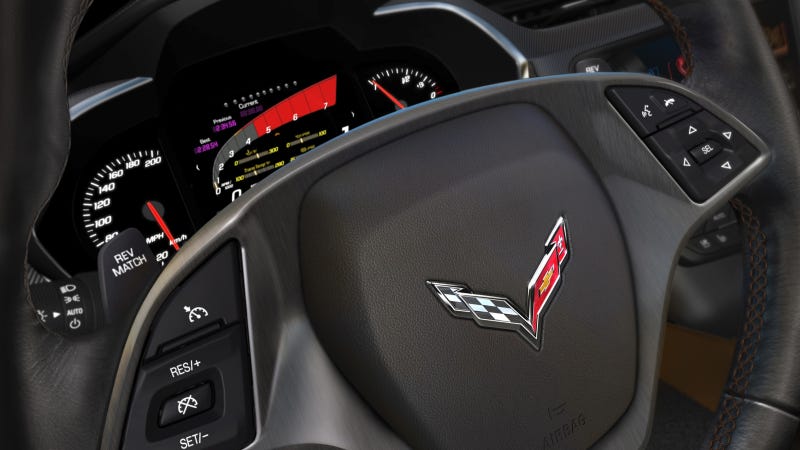

Flanked by three analogue gauges for speed, fuel level, and engine-coolant temperature, the eight-inch liquid-crystal display screen in the centre of the cluster is organised into sport, tour and track themes that change with the Driver Mode Selector. Each display theme is designed for a specific driving scenario and can be configured through applications found in the “app tray”.

“The new Corvette Stingray features many advanced technologies, so our challenge when designing the driver’s displays was to ensure that those technologies could be easily found in common driving scenarios,” said Jason Stewart, General Motors interaction designer.

“The touring theme places more emphasis on multimedia and infotainment; the sport theme emphasises performance features with a prominent shift indicator and a large radial tachometer; track theme offers a race-inspired layout containing a sweeping tachometer, Corvette racing inspired shift lights and permanent lap-time displays,” Stewart said. “Each of these three themes can also be configured so that drivers can personalise their experience in the Stingray.”

Advertisement

Here are 10 configurable display features that will help drivers realise the Stingray’s capabilities:

1. Tour theme – Displayed when the Stingray is in Weather, Eco, or Tour drive mode, this is the most modern display, providing essential vehicle information drivers want for commuting or long-distance driving and includes key vehicle information and multimedia displays

2. Sport theme – Displayed when the Stingray is in Sport mode, this theme is designed to recall the classic sports-car experience, with a single, radial tachometer dominating the display

3. Track theme – Inspired by the cluster of the Corvette Racing C6.R, this theme prioritizes the information vital for a successful track outing, including a “hockey stick” style tachometer, large gear indicator and shift lights

4. Adjustable redline – All themes feature an adjustable redline that shows the suggested maximum engine speed as low as 3,500 rpm when the engine is cold

5. Tachometer ‘halo’ – The Sport theme features a ring around the tachometer that glows from yellow to amber to red as engine rpms increase

Advertisement

6. Shift lights – The track theme features shift lights influenced by the C6.R, which illuminate from the outside-in, transition from green to yellow to blue and flash at redline providing an easy-to-see shift notification at high speeds

7. Friction-bubble/cornering force – The friction bubble that displays lateral and longitudinal G-forces allows drivers to measure how close they are to the Stingray’s limits

8. Tyre temperature gauge – Leveraging the existing Tyre Pressure Monitoring System, this patented system informs the driver as the tyres warm up from cold to warm to hot, with hot being the optimal temperature for peak grip and track performance

Advertisement

9. Acceleration timer – The interactive timer features programmable start/end speeds, which enable drivers to measure any acceleration run

10. Lap timer – Shows current, previous and best lap times, enabling drivers to measure their consistency while lapping a road course

The Corvette Stingray coupe will arrive at select dealerships across Europe toward the end of 2013.
